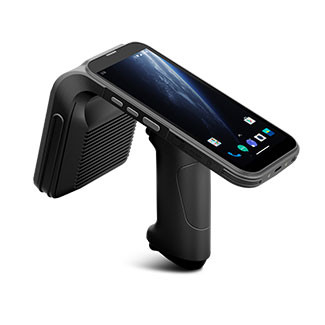

MC50 5G UHF RFID Reader (Android 12)
Chainway's Most Powerful Handheld RFID Reader, Setting New Standards for RFID Performance and EfficiencyChainway MC50 UHF is a 5G handheld reader integrates with Impinj E710 and supports Impinj Gen2X, it offers unparalleled UHF performance and a convenient UHF back-clip, allowing easy detachment and conversion into a lightweight mobile computer. Paired with fast 5G, Wi-Fi 6-ready connectivity, and many other top-tier features, this reader is your complete solution for unmatched performance.
MC50 5G UHF RFID Reader (Android 12)
Chainway's Most Powerful Handheld RFID Reader, Setting New Standards for RFID Performance and Efficiency
Chainway MC50 UHF is a 5G handheld reader integrates with Impinj E710 and supports Impinj Gen2X, it offers unparalleled UHF performance and a convenient UHF back-clip, allowing easy detachment and conversion into a lightweight mobile computer. Paired with fast 5G, Wi-Fi 6-ready connectivity, and many other top-tier features, this reader is your complete solution for unmatched performance.
features
functions
Specifications
Physical Characteristics
Dimensions
165.0 x 83.8x 138.0mm / 6.49 x 3.30 x 5.43 in.
Weight
679g / 23.95oz. (device with battery)
Display
6-inch high definition display (18:9), 1440 x 720
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
5000mAh removable main battery
5200mAh removable pistol battery with / without Meter(Optional)
support QC3.0 and RTC
5200mAh removable pistol battery with / without Meter(Optional)
support QC3.0 and RTC
Interfaces
USB Type-C, USB 3.1, OTG
Audio
2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver
Keypad
Power key, 2 scan keys, volume (+/-) keys
Sensors
G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; 2x2 MU-MIMO;
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,
WWAN
2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41
5G: N1/N3/N8/N28/N41/N78/N79
3G: 850/900/1900/2100MHz
4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41
5G: N1/N3/N8/N28/N41/N78/N79
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 12
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0GHz
RAM+ROM
4GB + 64GB / 6GB + 128GB (Optional) / 8GB + 128GB (Optional)
Expansion
Supports up to 256GB TF card
User Environment
Operating Temp
-4°F to 122°F / -20°C to +50°C
Storage Temp
-40°F to 158°F / -40°C to +70°C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5m / 1.64ft. falls at room temperature
Sealing
Host IP67 per IEC sealing specifications
Barcode Scanning
2D Scanner
Zebra: SE4710/SE5500/SE4750; CM60;
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note
*This function is optional
UHF RFID
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Circular Polarized Antenna (4 dBi)
Power
1W (30dBm, +5dBm to +30dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate
1300+ tags/sec (Circular Polarized)
Communication Mode
Pin Connector
Max Read Range
26m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note2
*This function is optional
*Ranges and rates depend on tags and environment
*Ranges and rates depend on tags and environment
Camera
Front Camera
5MP
Rear Camera
16MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional Accessories
Accessories
USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc.
Note
*See details in accessory guide
