C61 UHF RFID Reader (Android 11/13)

Name: C61 UHF RFID Reader (Android 11/13)
Brand: Chainway
SKU: C61--76
Price: 799 USD
Availability: InStock

Committed to Superior UHF Performance

Chainway C61 UHF is a high-performance key-based RFID reader. Based on Impinj E710 chip, it possesses ultra-long distance/ultra-large-scale/bulk-tags reading ability with accuracy, stability, and speed. Additionally, it supports the latest Impinj Gen2X for enhanced RFID performance. C61 offers abundant options include different keypad versions (27/37/47 keys), a detachable 6700mAh battery, optional 5200mAh battery for pistol grip, and Wi-Fi 6-ready, etc. This device can be easily implemented in various industries like logistics, manufacturing, retailing, etc.

Starting at $799.00

Adding to order… The item has been added

C61 UHF RFID Reader (Android 11/13)

Superior UHF Peformance, More Agaile Keystroke

Chainway C61 Android Pistol-Grip RFID Reader and 2D/1D/QR Barcode Scanner, Wireless, UHF, Bluetooth

features

functions

Specifications

Physical Characteristics

Dimensions

202.0 x 72.5 x 32.0mm / 7.95 x 2.85 x 1.26in.

Weight

13.05oz. / 370g(SE4710);
14.25oz. / 404g(SE4850);
26.05oz. / 738g(SE4850, UHF, pistol battery)
Device Weight for Argentina, Uruguay, Bolivia, Ecuador market: 342~404 g, including battery

Display

4-inch high definition display, 800 x 480

Battery

6700mAh removable main battery, 5200mAh optional pistol battery, support QC3.0 and RTC；Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security
Standby: up to 680 hours (only main battery

Touch Panel

Multi-touch panel, gloves and wet hands supported

Notification

Sound, LED indicator, vibrator

Interfaces

USB Type-C, USB 3.1, OTG, extended thimble

Card slot

1 slot for Micro SIM card, 1 slot for TF card

Audio

2 microphones, 1 for noise cancellation; 2 speakers; receiver

Keypad

Main keyboard (Optional): 27 keys / 37 keys / 47 keys;
Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key

Sensors

Accelerometer sensor, light sensor, proximity sensor, gravity sensor

Communication

WLAN

Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 13

WWAN (Europe, Asia)

2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

WWAN (America)

2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38

Bluetooth

Bluetooth 5.1

Vo-LTE

Support Vo-LTE HD video voice call

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Developing Environment

Operating System

Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.0 GHz

RAM+ROM

3GB + 32GB / 4GB + 64GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp

-4℉ to 122 ℉ / -20℃ to 50℃
-22℉ to 122℉ / -30℃ to 50℃ (cold storage model)

Storage Temp

-40℉ to 158℉ / -40℃ to 70℃

Humidity

5 RH to 95%RH (non condensing)

Drop Specification

Multiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range

Tumble Specification

1000 x 0.5m / 1.64ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

± 15KV air discharge, ± 8KV conductive discharge

Barcode Scanning

2D Imager Scanner

Zebra: SE4710/SE4750SR/SE4750MR/SE4750DP/SE4850; Honeywell: N6603/EX30

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

UHF RFID

Engine

CM710-1 module based on Impinj E710

Frequency

865-868MHz / 920-925MHz / 902-928MHz

Impinj Gen2X

Supported

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Circular Polarized Antenna (4dBi)

Power

1W (30dBm, +5dBm to +30dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)

Fastest Read Rate

1300+ tags/sec

Communication Mode

Pin Connector

Max Read Range

27m (Impinj MR6 tag, size70 x 15mm)
26m (Impinj M750 tag, size70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Note

* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.

Note2

*This function is optional

Camera

Rear Camera

Rear 13MP Autofocus with flash

NFC

Frequency

13.56MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4cm

Optional Accessories

Accessories

Separate handle with one button；

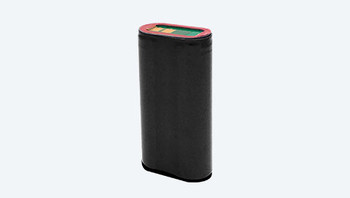

Handle + battery (handle battery 5200mAh, one button) ;
UHF back clip + handle (5200mAh, one button) ;

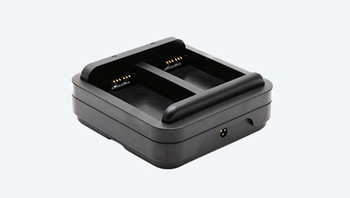

Wrist Strap; Charging Cradle

Note

*See details in Accessory Guide
