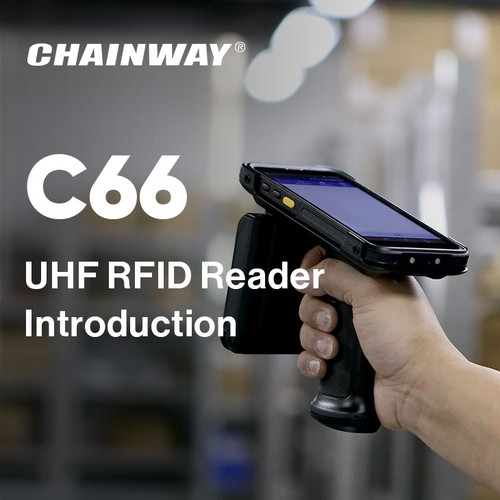

C66 UHF RFID Reader (Android 11/13)
Larger Screen Display, Stronger UHF PerformanceC66 UHF is the ultimate RFID reader which is highly sensitive with a reading range up to 30m. The C66 UHF (Built-in) is a lightweight phone-size reader built for short-distance applications. Both of them support Impinj Gen2X for enhanced RFID performance. Besides, they feature Android 11/13, Qualcomm Octa-core processor, 5.5'' large screen, powerful battery, 13MP camera, and optional barcode scanning.
C66 UHF RFID Reader (Android 11/13)
A Simple Device with High-in Class UHF Performance
C66 UHF is the ultimate RFID reader which is highly sensitive with a reading range up to 30m. The C66 UHF (Built-in) is a lightweight phone-size reader built for short-distance applications. Both of them support Impinj Gen2X for enhanced RFID performance. Besides, they feature Android 11/13, Qualcomm Octa-core processor, 5.5'' large screen, powerful battery, 13MP camera, and optional barcode scanning.
features
functions
Specifications
Physical Characteristics
Dimensions
160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in.
Weight
657 g / 23.17 oz. (with battery, UHF 1, UHF back clip);
798 g / 28.15 oz. (with battery, UHF 2, C66+R6);
297 g / 10.47 oz. (with battery, UHF 3, Built-in UHF)
798 g / 28.15 oz. (with battery, UHF 2, C66+R6);
297 g / 10.47 oz. (with battery, UHF 3, Built-in UHF)
Display
5.5-inch high definition full display (18:9) , IPS 1440 x 720
Battery
Removable main battery (normal version:4420 mAh ; with fingerprint / built-in UHF / volume measurement version: 5200mAh )

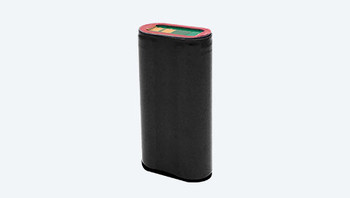

5200 mAh optional pistol battery, support QC3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4
5200 mAh optional pistol battery, support QC3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4
Touch Panel
Multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces

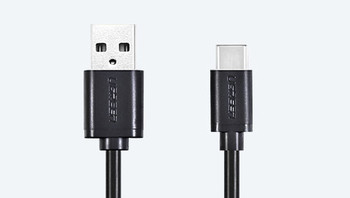

USB Type-C, USB 3.1, OTG, extended thimble;
Card slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
1 power key, 2 scan keys, 2 volume keys
Sensors
Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 13
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 13
WWAN (Europe, Asia)
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
WWAN (America)
2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Note
*C66 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Developing Environment
Operating System
Android 11/13; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0 GHz
RAM+ROM
3 GB + 32 GB
4 GB + 64 GB (optional)
6 GB + 128 GB (optional)
4 GB + 64 GB (optional)
6 GB + 128 GB (optional)
Expansion
Supports up to 256 GB Micro SD (TF) card
User Environment
Operating Temp
-20 ℃~+50 ℃
Storage Temp
-40 ℃~+70 ℃
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Scanner
Zebra: SE4710 / SE2100; Honeywell: N6603; E3200; IA166S; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note
*This function is optional
UHF3
Engine
CM-5N module based on Impinj E510
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Antenna
Linear Polarized Antenna (-5 dBi)
Impinj Gen2X
Supported
Power
1 W (+5dBm to +30dBm adjustable)
Max Read Range
2.4m (Impinj MR6 tag, size 70 x 15mm)
2.6m (Impinj M750 tag, size 70 x 15mm)
2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)
2.6m (Impinj M750 tag, size 70 x 15mm)
2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note
* Build-in UHF
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* This function is optional; built-in UHF
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* This function is optional; built-in UHF
UHF1
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Antenna
Circular Polarized Antenna (4dBi)
Power
1W (30dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
2W Optional (33dBm, for Latin America, etc.)
Max Read Range
28m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate
1300+ tags/sec
Communication Mode
Pin Connector
Note
* UHF back clip
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* This function is optional
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* This function is optional
UHF2
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Antenna
Circular Polarized Antenna (3 dBi)
Power
1W (30 dBm, support +5~+30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)
2W Optional (33 dBm, for Latin America, etc.)
Max Read Range
30m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
28m (Impinj M750 tag, size 70 x 15mm)
31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate
1300+ tags/sec
Communication Mode
Pin Connector / Bluetooth
Note
* C66 + R6 UHF Sled
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* This function is optional
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* This function is optional
Camera
Camera
Rear 13 MP Autofocus with flash
Facial Recognition lSO19794-5 Compatible
Facial Recognition lSO19794-5 Compatible
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional Accessories
Accessories
Separate handle with one button；
Handle + battery (handle battery 5200mAh, one button) ;
UHF back clip + handle (5200mAh, one button) ;

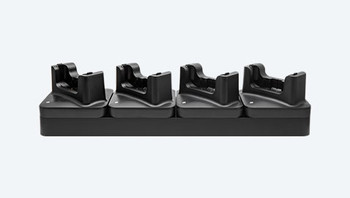

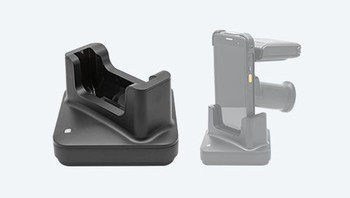

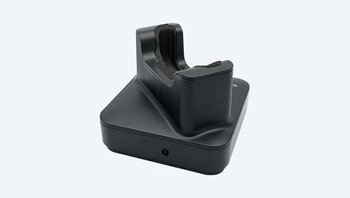

Wrist Strap; Rubber Bumper; Charging Cradle
Handle + battery (handle battery 5200mAh, one button) ;
UHF back clip + handle (5200mAh, one button) ;
Wrist Strap; Rubber Bumper; Charging Cradle
Note
*See details in Accessory Guide
