C72 UHF RFID Reader (Android 11/13)
Industry-leading RFID PerformanceChainway C72 is an Android rugged RFID reader that boasts best-in-class UHF RFID capability. Built with embedded Impinj E710 and supports Impinj Gen2X, it enables more than 30m read distance and more excellent performanc. The RFID reader features optional barcode scanning, Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications, especially in asset management, retail, warehousing, apparel inventory, expressway toll, fleet management, finance, etc.
C72 UHF RFID Reader (Android 11/13)
Industry-leading RFID Performance
Chainway C72 is an Android rugged RFID reader that boasts best-in-class UHF RFID capability. Built with embedded Impinj E710 and supports Impinj Gen2X, it enables more than 30m read distance and more excellent performanc. The RFID reader features optional barcode scanning, Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications, especially in asset management, retail, warehousing, apparel inventory, expressway toll, fleet management, finance, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
Weight
654 g / 23.07 oz.
Display
5.2'' IPS LTPS 1920 x 1080
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification
Sound, LED indicator
Expansion Slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces
USB 2.0 Type-C, OTG, Type-C headphones supported
Audio
1 microphone；1 speaker；receiver
Keypad
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors
Light sensor, proximity sensor, gravity sensor
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28A
&
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28A
&
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Note
*C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Developing Environment
Operating System
Android 11/13; GMS, 90-day security updates, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported.
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.3GHz
RAM+ROM
3GB + 32GB / 4GB + 64GB (optional)
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
Host IP65 per IEC sealing specifications
ESD
±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
1D Linear Scanner
Honeywell: N4313
2D Imager Scanner
Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
UHF RFID
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Antenna
circular polarization (4 dBi)
Power
1W (30 dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)
2W Optional (33 dBm, for Latin America, etc.)
Fastest Read Rate
1300+ tags/sec (circular polarization)
Max Read Range
26m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note
*Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Note2
*This function is optional
Camera
Camera
13 MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Note
*This function is optional
Support & Downloads
Videos
10/20/23
5/17/22
Documents & Manuals
12/2/22
12/3/24
4/28/23
4/28/23
Accessories
Adapter-US (C72 RFID)
PWR-C72RFID-5V2A-US

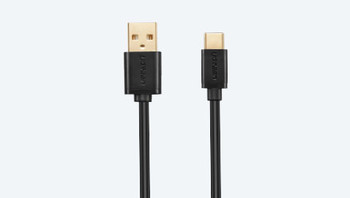

USB-C Cable (C72 RFID)
DC-C72-TypeC

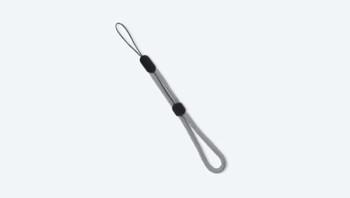

Hand Strap (C72 RFID)
SG-C72RFID-LYD-GY

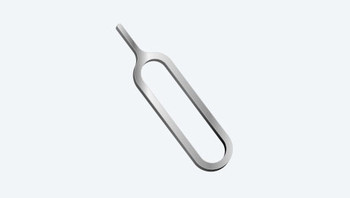

Sim Tray Ejector (C72 RFID)
SIM-TRAY-EJECTOR-C72RFID
Charging Cradle Basic (C72 RFID)
CRD-C72-SCC

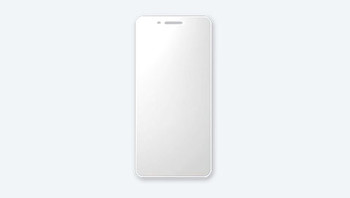

Screen Protector (C72 RFID)
SP-C72RFID
Charging Cradle (C72 RFID)
CRD-C72RFID-RBC
Charging Cradle with Ethernet (C72 RFID)
CRD-C72RFID-RBCE
Pistol Grip (C72 RFID)
TRG-C72RFID-PG
Rugged Protective Boot (C72 RFID)
RB-C72RFID-RR
Holster (C72 RFID)
SG-C72RFID-CPH
