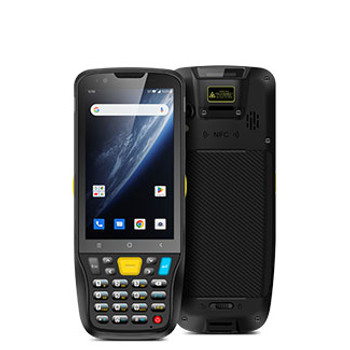

C70 Mobile Computer with Thermometer
High Precision Temperature Measurement in One SecondChainway C70 is a high-performance handheld computer specially developed for temperature measurement. Based on Android 11 and Octa-core processor, it features first-class configuration and fast processing. With integrated infrared temperature measurement module, the device supports non-contact temperature measurement of human forehead and object, and can be widely used in various temperature measurement scenarios. The temperature measurement module on the top brings great convenience to users. And it also offers optional NFC, barcode scanning, etc.
C70 Mobile Computer with Thermometer
Enable Non-contact Temperature Measurement
Chainway C70 is a high-performance handheld computer specially developed for temperature measurement. Based on Android 11 and Octa-core processor, it features first-class configuration and fast processing. With integrated infrared temperature measurement module, the device supports non-contact temperature measurement of human forehead and object, and can be widely used in various temperature measurement scenarios. The temperature measurement module on the top brings great convenience to users. And it also offers optional NFC, barcode scanning, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
163.8*79.2*13.8 mm / 6.45*3.12*0.54 in.
Weight
< 242 g / 8.5 oz.
Display
5.2'' IPS LTPS 1920 x 1080
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 4000mAh
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 2-3 hours (with standard adaptor and USB cable)
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 2-3 hours (with standard adaptor and USB cable)
Notification
Sound, LED indicator, vibrator
Expansion Slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces
USB2.0 Type-C, OTG
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Sensors
Light sensor, proximity sensor, gravity sensor
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
Operating System
Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK
Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.3GHz
RAM+ROM
3GB + 32GB / 4GB + 64GB
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-4°F to 122°F / -20°C to 50°C
Storage Temp
-40°F to 158°F / -40°C to 70°C
Humidity
5%RH - 95%RH non condensing
Drop Specification
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the
concrete across the operating temperature range
concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 / IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
2D Imager Scanner
Zebra SE4710 / Honeywell N6603
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
Camera
Camera
13MP Autofocus with flash, optional 5MP front camera
Note
*Front Camera is optional
NFC
Frequency
13.56MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4cm
Temperature Collection
Measure Position
Human forehead / Object surface
Measure Method
Non-contact / Infrared
Measure Distance
1-3 cm
Measure Range
Human forehead: 32°C to 42.9°C; Object surface: -40°C to 115°C;
Measure Accuracy
Human forehead: ±0.2°C; Object surface: ±0.5°C;
Measure Duration
≤1S
Spectral Range
5.5 -15 μm
Resolution
0.02°C
Note
*The infrared module has 80 degrees limitation, the best measure angle should be in this range.
