C66 Mobile Computer (Android 11/13)

More Powerful, More Extensible, More Advanced in Every Way
C66 Mobile Computer (Android 11/13)
Chainway C66 is a highly expandable large-screen rugged handheld computer. Equipped with octa-core processor and Android 11/13, C66 comes with 5.5-inch HD display, barcode scanning, and NFC function. The device supports quick charge and UHF sled for high extensibility. It offers optional fingerprint recognition, built-in UHF function and with Wi-Fi 6-ready platform for higher data throughput and security that fully satisfy the needs in logistics, warehouse, manufacturing, retail, etc.
features
functions

Specifications

Physical Characteristics
Dimensions
160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67 in.
Weight
287 g / 10.12 oz. (device with battery);
297 g / 10.47 oz. (device with battery, Fingerprint / Built-in UHF)
Battery
Removable main battery (normal version:4420 mAh ; With fingerprint / built-in UHF version: 5200mAh )
5200 mAh optional pistol battery, support QC 3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Co
Display
5.5-inch high definition full display (18:9) , IPS 1440 x 720
Touch Panel
Multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces
USB Type-C, USB 3.1, OTG, extended thimble
Card slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
1 power key, 2 scan keys, 2 volume keys
Sensors
Accelerometer sensor, light sensor, proximity sensor
gravity sensor, gyroscope sensor(optional)
geomagnetic sensor(optional),
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 13
WWAN (Europe, Asia)
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
       WCDMA: 850/900/1900/2100MHz
       TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
WWAN (America)
2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Note
* C66 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Developing Environment
Operating System
Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0GHz
RAM+ROM
3GB + 32GB / 4GB + 64GB / 6GB + 128GB
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-20 ℃~+50 ℃
Storage Temp
-40 ℃~+70 ℃
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
MIL-STD-810H(SGS Test): Multiple 1.22 M
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications, IP67 optional
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
Scan engine
Zebra: SE4710/SE4100;
Honeywell: N6603/N6703/6803FR/HS7;
IA166S; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note
* This function is optional
UHF1
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Circular Polarized Antenna (4dBi)
Power
1W (30dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
Max Read Range
28m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate
1300+ tags/sec
Communication Mode
Pin Connector
Note
* C66 UHF (Back Clip)
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.;
* This function is optional
UHF2
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Supports Impinj Gen2X
Antenna
Circular Polarized Antenna (3 dBi)
Power
1W (30 dBm, support +5~+30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)
Max Read Range
30m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate
1300+ tags/sec
Communication Mode
Pin Connector / Bluetooth
Note
* C66 + R6 UHF Sled
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.;
* This function is optional
UHF3
Engine
CM-5N module based on Impinj E510
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X
Antenna
Linear Polarized Antenna (-5 dBi)
Power
1 W (+5 dBm to +30 dBm adjustable)
Max Read Range
2.4m (Impinj MR6 tag, size 70 x 15mm)
2.6m (Impinj M750 tag, size 70 x 15mm)
2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note
* C66 UHF (Built-in)
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* Optional; This version does not
Fingerprint 1
Sensor
TCS1
Sensing Area (mm)
12.8 × 18.0
Resolution (dpi)
508 dpi, 8-bit greylevel
Certifications
FIPS 201, STQC
Format Extraction
ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
* Optional; Fingerprint version does not support pistol
Fingerprint 2
Sensor
TLK1NC02
Sensing Area (mm)
14.0 X 22.0
Resolution (dpi)
508dpi, 256 greylevel
Certifications
FIPS 201, FBI
Format Extraction
ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
* Optional; Fingerprint version does not support pistol
Camera
Camera
Rear 13 MP Autofocus with flash
Facial Recognition lSO19794-5 Compatible
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional Accessories
Accessories
Separate handle with one button；
Handle + battery (handle battery 5200mAh, one button) ;
UHF back clip + handle (5200mAh, one button) ;
Wrist Strap; Rubber Bumper; Charging Cradle;Lanyard grey
Note
* See details in Accessory Guide

Support & Downloads

Videos
Documents & Manuals

C66 Data Sheet

1/24/25

C66 User Manual

12/14/21

Accessories

PWR-C66-5V2A-CN

Adapter-CN (C66)

PWR-C66-5V2A-CN
Adapter-EU (C66)

Adapter-EU (C66)

PWR-C66-5V2A-EU
PWR-C66-5V2A-UK

Adapter-UK (C66)

PWR-C66-5V2A-UK
PWR-C66-5V2A-US

Adapter-US (C66)

PWR-C66-5V2A-US
Chainway PWR-18W-US-C66 Power Supply for C66 Android Handheld Barcode Scanner

Quick Charge Adapter-US (C66)

PWR-18W-US-C66
DC-BK-TypeC-C66

USB Cable (C66)

DC-BK-TypeC-C66
Chainway BTRY-C66-43MA Battery for C66

Battery (C66)

BTRY-C66-43MA
RB-C66-RRP

Rugged Rubber POGO Boot (C66)

RB-C66-RRP
Chainway RB-C66-RR

Rugged Rubber Boot (C66)

RB-C66-RR
Chainway RB-C66-RRHP

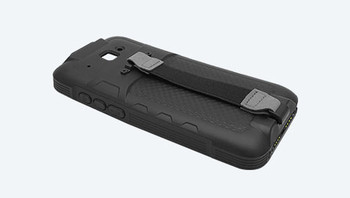

Rugged Rubber POGO Boot with Hand Strap (C66)
