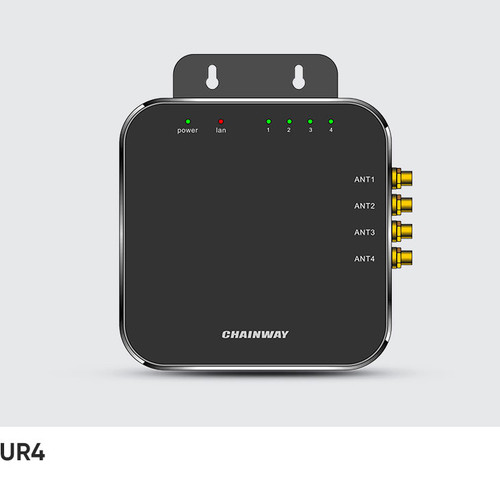

UR4 Fixed RFID Reader
Stable and Reliable CapacityChainway UR4 is a four-port fixed UHF RFID reader, configured with Impinj E710 RFID chip and supports the Impinj Gen2X. It supports RS232 and RJ45, and can be compatible with various types of antennas. It is resistant to electromagnetic interference and good at heat dispersion. With high integration level and stable capacity, the RFID reader can be deployed in complex environments, such as warehousing, archives and library management, banking, shoes and apparel, jewelry, watch, laundry, production line, medical equipment cabinets, vending machine.
features
functions
Specifications
Physical Characteristics
Dimensions
102.8 mm(L) x 102.8 mm(W) x 28 mm(H)
Weight
329 g / 11.6 oz.(without antenna)
Material
Aluminium alloy
Input Voltage
DC 9V – 12V
Standby Current
< 30mA
Comm Interface
RS-232 / RJ45
GPIO
2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve)
Baud Rate
115200 bps
Cooling Mode
Air cooling
Work Current
800mA +/-5% @ DC 12V Input
Ethernet interface
10/100 Base-T Ethernet (RJ45)
Power Supply
POE (802.3af 13W) (Optional)
POE+ (802.3at 25.5W) (Optional)
POE+ (802.3at 25.5W) (Optional)
Developing Environment
SDK
Windows, Linux, Android
User Environment
Operating Temp
-25 °C to 65 °C
Storage Temp
-40 °C to 85 °C
Humidity
10%- 95%
UHF RFID
Engine
CM710-4 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna
Supporting a variety of antennas, such as 6dBic, 9dBic
Output Power
1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.)
2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.)
Output Power Precision
+/- 1dB
Output Power Flatness
+/- 0.2dB
Receive Sensitivity
< -84 dBm
RSSI
Supported
Ambient Temp Monitor
Supported
Fastest Read Rate
900+ tags/sec
Antenna Detector
Supported
Antenna Port
4 channel 50Ω SMA port
