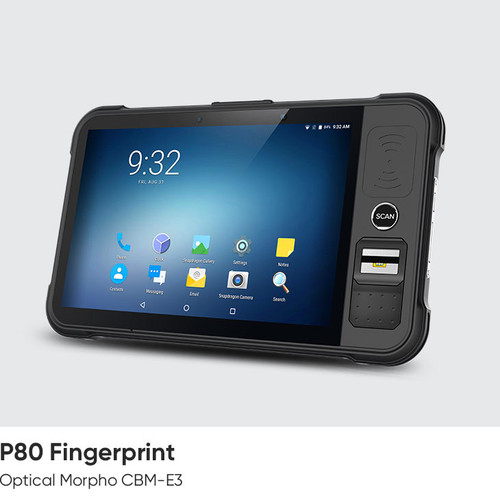

P80 Optical Fingerprint Tablet (Android 9)
8'' Screen & 8000mAh Battery, Abundant Functions AvailableThis is an Android 9 rugged tablet with abundant functions . With its powerful Qualcomm CPU, 3rd generation corning gorilla 8 inch corning high-definition screen, 8000 mAh battery and comprehensive data capture options like barcode scanning, NFC and fingerprint recognition, etc. You can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.
P80 Optical Fingerprint Tablet (Android 9)
8'' Screen & Large Battery, Abundant Functions Available
This is an Android 9 rugged tablet with abundant functions . With its powerful Qualcomm CPU, 3rd generation corning gorilla 8 inch corning high-definition screen, 8000 mAh battery and comprehensive data capture options like barcode scanning, NFC and fingerprint recognition, etc. You can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
250.8 x 152 x 15 mm/ 9.87 x 5.98 x 0.59 in.(for standard version)
Weight
700 g / 24.7 oz. (for standard version)
Display
8'' IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800
Touch Panel
Corning Gorilla Glass 3, multi-touch panel, gloves and w et hands supported
Power
Main battery: Li-ion, rechargeable, 8000mAh Standby: over 500 hours
Continuous use: over 10 hours (depending on user environment)
Charging time: 5-7 hours (with standard AC adaptor and USB cable)
Continuous use: over 10 hours (depending on user environment)
Charging time: 5-7 hours (with standard AC adaptor and USB cable)
Notification
Sound, LED indicator
Expansion Slot
1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots
Interfaces
USB 2.0 Type-C, OTG
Audio
1 microphone；1 speaker；receiver
Keypad
1 front key, 1 volume key, 1 power key
Sensors
Accelerometer sensor, geomagnetic sensor, gyroscope
Communication
WLAN
Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153
WWAN (Europe, Asia)
2G: 850/900/1800/1900MHz, GPRS, EDGE
3G: CDMA EVDO: BC0
TD-SCDMA: B34/B39
WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-L
3G: CDMA EVDO: BC0
TD-SCDMA: B34/B39
WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-L
WWAN (America)
3G: WCDMA: B2/B4/B5
4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Developing Environment
Operating System
Android 9; GMS, Android Enterprise, Zero-Touch,FOTA, Soti MobiControl, SafeUEM supported
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
SDM450 1.8GHz Octa-core
RAM+ROM
3GB + 32GB
4GB + 64GB (optional)
4GB + 64GB (optional)
Expansion
Supports up to 128GB Micro SD card
User Environment
Operating Temp
-4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5 m / 4.9 ft. drops to concrete across the operating temperature range
Tumble Specification
500 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 Complete protection against contact (dust tight). Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful eddects.
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Imager Scanner
Zebra SE4710 (standard), Zebra SE4850 (optional)
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.
Fingerprint Recognition
Sensor
Optical Morpho CBM-E3
Sensing Area (mm)
14x22
Resolution (dpi)
500 dpi, 256 greylevel
Certifications
FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction
ISO 19794-2/4
Fake Finger Detection
Yes
Security
FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Camera
Front Camera
5 MP
Rear Camera
13MP autofocus rear camera with flash
NFC
Frequency
13.56 MHz
