R6 UHF RFID Sled Reader

Name: R6 UHF RFID Sled Reader
Brand: Chainway
SKU: R6
Price: 599 USD
Availability: InStock

Powerful RFID and Barcode Reading

Chainway R6 is a Pistol-Grip RFID Reader and 2D/1D/QR Barcode Scanner Sled Holder/Attachment for Android and iOS Smart Phones and Devices. Wireless Bluetooth for easy connectivity and multiple HID modes. A complete one-piece solution for phones and handhelds. Easily transform smart phones into a pistol-grip data collection device. Built with Impinj E710 Gen2 for powerful RFID tag reading that enables read distance of over 31m outdoors, and 2D/1D/QR barcode scanning.

Starting at $599.00

Adding to order… The item has been added

R6 UHF RFID Sled Reader

Make Mobile Phone as a Professional Data Collection Device

Chainway R6 UHF RFID Reader Pistol-Grip Handhled Attachment Sled, Wireless Bluetooth for Android and iOS Devices

features

functions

Specifications

Physical Characteristics

Dimensions

151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in.

Weight

Sled Reader: 438 g / 15.45 oz.

Power

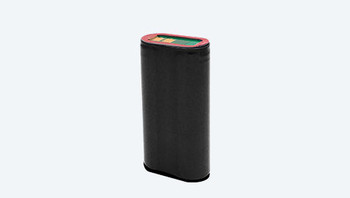

Battery specification:5200 mAh removable battery
Standby: over 70 hours (keeping bluetooth connected)
Continuous use: up to 2.5 hours (UHF reading: 400 tags)
Charging time:4-5 hours (with standard adaptor and USB cable)

Buzzer

Support

Interfaces

USB 3.0 Type-C

Indicator LED

Power, Work, Bluetooth

Size of adapted phone

Sled Reader: Width 68~80 mm, thickness ≤ 22 mm
Others: Based on phone case or holder

Colour

Black

Product Material

Plastic

Communication

Bluetooth

Bluetooth Low Energy (BLE) 5.0

Developing Environment

SDK

Android / iOS

Language

Java / Objective-C

Tool

Android Studio / Xcode

User Environment

Operating Temp

-4℉~+122℉ / -20℃~+50℃

Storage Temp

-40℉~+158℉ / -40℃~+70℃

Humidity

5%RH - 95%RH non condensing

Drop Specification

Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP54 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Performance

MCU

Cortex-M3
72MHz

Barcode Scanning

2D Imager Scanner

SE2707

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

UHF RFID

Engine

CM710-1 module based on Impinj E710

Frequency

920-925 MHz / 902-928 MHz / 865-868 MHz

Impinj Gen2X

Supported

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Circular Polarized Antenna (4dBi)

Power

1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)

Fastest Read Rate

1300+ tags/sec

Max Read Range

30m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
31m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Note

* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
