P80 Industrial Tablet (Android 9)
8'' Screen & 8000mAh Battery, Abundant Functions AvailableChainway P80 is an Android 9 rugged tablet with abundant functions. With Qualcomm Octa-Core CPU, 8-inch FHD screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, NFC, fingerprint recognition, etc. The rugged tablet can meet requirements in industrial fulfillments, such as retail, logistics, power, warehousing, transportation and so forth.
P80 Industrial Tablet (Android 9)
8'' Screen & Large Battery, Abundant Functions Available
Chainway P80 is an Android 9 rugged tablet with abundant functions. With Qualcomm Octa-Core CPU, 8-inch FHD screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, NFC, fingerprint recognition, etc. The rugged tablet can meet requirements in industrial fulfillments, such as retail, logistics, power, warehousing, transportation and so forth.
features
functions
Specifications
Physical Characteristics
Dimensions
250.8 mm x 152.0 mm x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version )
Weight
700 g / 24.7 oz. ( for standard version )
Display
8'' IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours
Continuous use: over 10 hours ( depending on user environment )
Charging time: 5-7 hours ( with standard AC adaptor and USB cable )
Standby: over 500 hours
Continuous use: over 10 hours ( depending on user environment )
Charging time: 5-7 hours ( with standard AC adaptor and USB cable )
Notification
Sound, LED indicator
Expansion Slot
1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots
Interfaces
USB 2.0 Type-C, OTG
Audio
1 microphone；1 speaker；receiver
Keypad
1 front key, 1 volume key, 1 power key, direction key (optional)
Sensors
Accelerometer sensor, geomagnetic sensor, gyroscope
Communication
WLAN
Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153
WWAN (Europe, Asia)
2G: 850/900/1800/1900MHz, GPRS, EDGE
3G: CDMA EVDO: BC0
TD-SCDMA: B34/B39
WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-L
3G: CDMA EVDO: BC0
TD-SCDMA: B34/B39
WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-L
WWAN (America)
3G: WCDMA: B2/B4/B5
4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Note
*P80 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Developing Environment
Operating System
Android 9; GMS, 90-day security updates, Android Enterprise, Zero-Touch,FOTA, Soti MobiControl, SafeUEM supported
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
User Environment
Operating Temp
-4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5 m / 4.9 ft. drops ( at least 20 times ) to the concrete across the operating temperature range
Tumble Specification
500 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Performance
CPU
Octa-core 1.8GHz ; GMS&AER
RAM+ROM
3GB + 32GB
4GB + 64GB (optional)
4GB + 64GB (optional)
Expansion
Supports up to 256GB Micro SD (TF) card
Barcode Scanning
2D Imager Scanner
Zebra SE4710
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
* This function is optional
UHF1
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X
Supports Impinj Gen2X
Antenna
Circular polarization (3 dBi)
Power
1W ( 30dBm, +5dBm to +30dBm adjustable )
2W Optional ( 33dBm, for Latin America, etc. )
2W Optional ( 33dBm, for Latin America, etc. )
Max Read Range
Up to 10 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate
900+ tags/sec
Note
* Optional
* Ranges and rates depend on tags and environment
* Ranges and rates depend on tags and environment
UHF2
Engine
CM310-1 module based on Impinj E310
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X
Supports Impinj Gen2X
Antenna
0 dBi
Power
1W ( 30dBm, +5dBm to +30dBm adjustable )
Max Read Range
30 cm
Note
*Built-in UHF, optional
* Ranges and rates depend on tags and environment.
* Ranges and rates depend on tags and environment.
Fingerprint 1
Sensor
TCS1 Capacitive
Sensing Area (mm)
12.8 × 18.0
Resolution (dpi)
508 dpi, 8-bit greylevel
Certifications
FIPS 201, STQC
Format Extraction
ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
* This function is optional
Fingerprint 2
Sensor
TLK1NC02
Sensing Area (mm)
14.0 X 22.0
Resolution (dpi)
508dpi, 256-bit greylevel
Certifications
FIPS 201, FBI
Format Extraction
ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
* This function is optional
Fingerprint 3
Sensor
Optical Morpho CBM-E3
Sensing Area (mm)
14 x 22
Resolution (dpi)
500 dpi, 256 greylevel
Certifications
FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction
ISO 19794-2/4, WSQ, ANSI 378, etc.
Fake Finger Detection
Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Pape
Security
FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Note
* This function is optional
Camera
Front Camera
8 MP
Rear Camera
13MP autofocus rear camera with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card ( S50, S70 ), CPU card, NFC tags, etc.
Range
2-4 cm
PSAM
Protocol
ISO7816
Slots
2 PSAM card slots
Note
* This function is optional
Support & Downloads
Accessories

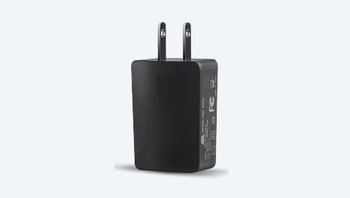

Power Adapter US (P80)
PWR-P80A9-5V2A-US
USB Charging Cable (P80)
DC-BK-TypeC-P80A9
HandStrap (P80)
SG-P80A9-HDSTP

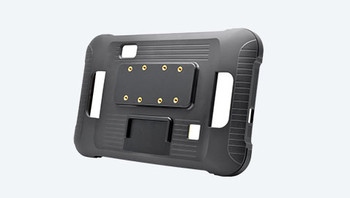

Rugged Case (P80)
