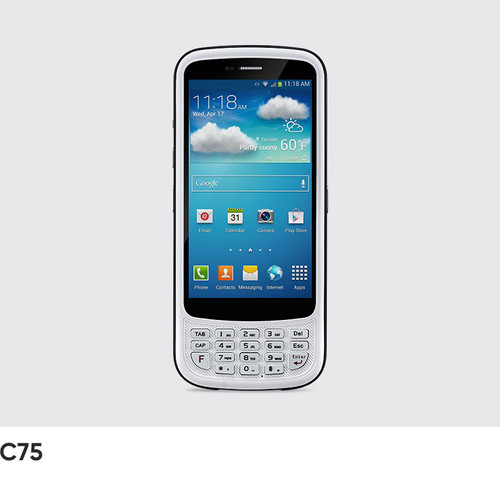

C75 Mobile Computer with Printer
Mobile Efficient Receipt PrintingChainway C75 is a handheld computer with large display and thermal printing. It supports various type of printing cores and enables quick printing of receipt. The built-in dual slots for PSAM cards help in easy encryption of data. And it boasts superb performance, and supports optional NFC, barcode scanning, etc. This mobile computer can be used in various sectors like retail, parking and so forth.
C75 Mobile Computer with Printer
Mobile Efficient Receipt Printing
Chainway C75 is a handheld computer with large display and thermal printing. It supports various type of printing cores and enables quick printing of receipt. The built-in dual slots for PSAM cards help in easy encryption of data. And it boasts superb performance, and supports optional NFC, barcode scanning, etc. This mobile computer can be used in various sectors like retail, parking and so forth.
features
functions
Specifications
Physical Characteristics
Dimensions
186.89*83.99*35.04-49.49mm
Weight
507g/17.88oz
Display
5.2'' IPS LTPS 1920 x 1080P
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 8000mAh
Notification
Sound, LED indicator
Expansion Slot
2 PSAM slots at most (ISO7816 protocol), 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces
USB 2.0 Type-C, OTG
Audio
1 microphone；1 speaker；receiver
Keypad
1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard
Sensors
Light sensor, proximity sensor, gravity sensor
Colour
Black + White
Communication
WLAN
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Note
*C75 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Developing Environment
Operating System
Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core 2.3GHz
RAM+ROM
3GB + 32G / 4GB + 64GB (optional)
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-4°F to 122°F / -20°C to 50°C
Storage Temp
-40°F to 158°F / -40°C to 70°C
Humidity
5%RH - 95%RH non condensing
Drop Specification
Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range
Sealing
IP54
ESD
±15KV air discharge, ±6KV conductive discharge
Barcode Scanning
2D Imager Scanner
Zebra SE4710
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
Camera
Camera
13MP Autofocus with flash
Thermal Printer
Rate
85 mm/s
Image Size (pixel)
384 dots
Paper Width
58 mm
Paper Diameter
3 cm
Paper Length
5.45 m
NFC
Frequency
13.56MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4cm
Support & Downloads
Accessories
Adapter（CN）-74
PWR-C75-5V2A-CN
Adapter（EU）-75
PWR-C75-5V2A-EU
Adapter（UK）-76
PWR-C75-5V2A-UK
Adapter（US）-77
PWR-C75-5V2A-US
USB Cable-78
DC-C75-TypeC

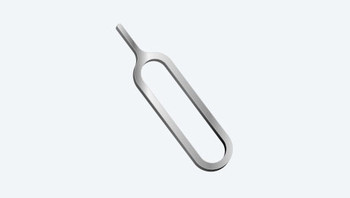

Sim Tray Ejector-80
SIM-TRAY-EJECTOR-80

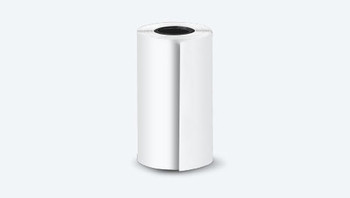

Thermal Paper Roll
PRTP-C75-TP
