C71 Built-in RFID Reader (Android 11/13)
Lightweight and Portable, Superior UHF CapabilityChainway C71 is a built-in Android RFID reader. The newly-upgrade of Octa-Core CPU brings the overall performance improvement that enables high-speed and stable possessing. It configures with an internal UHF module based on Impinj E310 Chip, supporting the latest Impinj Gen2X for enhanced UHF performance. Integrated with superb RFID performance that allows read distance of 4m, it is lightweight, supports optional barcode scanning. The RFID reader can best meet the needs in retail, logistics, warehousing, healthcare, finance, transportation, etc.
C71 Built-in RFID Reader (Android 11/13)
Lightweight and Portable, Superior UHF Capability
Chainway C71 is a built-in Android RFID reader. The newly-upgrade of Octa-Core CPU brings the overall performance improvement that enables high-speed and stable possessing. It configures with an internal UHF module based on Impinj E310 Chip, supporting the latest Impinj Gen2X for enhanced UHF performance. Integrated with superb RFID performance that allows read distance of 4m, it is lightweight, supports optional barcode scanning. The RFID reader can best meet the needs in retail, logistics, warehousing, healthcare, finance, transportation, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
164.2 x 78.8 x 17.5mm / 6.46 x 3.10 x 0.69 in.
Weight
＜321 g / 11.32 oz.
Display
5.2'' IPS LTPS 1920 x 1080
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 5000 mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification
Sound, LED indicator, vibrator
Expansion Slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces
USB 2.0 Type-C, OTG, Type-C headphones supported
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors
Light sensor, proximity sensor, gravity sensor
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Note
C71 models being manufactured for Turkish & Egyptian Markets, do not include Voice Call ( Phone Call ) function. WAN module included on those models only support DATA transfer.
Developing Environment
Operating System
Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core 2.3 GHz
RAM+ROM
3GB + 32GB
4GB + 64GB (optional)
4GB + 64GB (optional)
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
4 °F to 113 °F / -20 °C to 45 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 / IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
1D Linear Scanner
Honeywell: N4313
2D Imager Scanner
Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
* This function is optional
UHF RFID
Engine
CM-3N module based on Impinj E310
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Circular polarization (1.5 dBi)
Power
1W (+5 dBm to +30 dBm adjustable)
Max Read Range
3m (Impinj MR6 tag, size 70 x 15mm)
3m (Impinj M750 tag, size 70 x 15mm)
4m (Alien H3 Anti-Metal tag, size 130 x 42mm)
3m (Impinj M750 tag, size 70 x 15mm)
4m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
* The UHF frequency of Egypt is 865-868 MHz.
* The UHF frequency of Egypt is 865-868 MHz.
Camera
Front Camera
5 MP
*This function is optional
*This function is optional
Rear Camera
13 MP autofocus rear camera with flash
Facial Recognition lSO19794-5 Compatible
Facial Recognition lSO19794-5 Compatible
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Support & Downloads
Documents & Manuals
12/3/24
9/9/21
11/20/18
Accessories
Adapter-US (C71 RFID)
PWR-C71RFID-5V2A-US
USB-C Cable (C71 RFID)
DC-C71RFID-TypeC

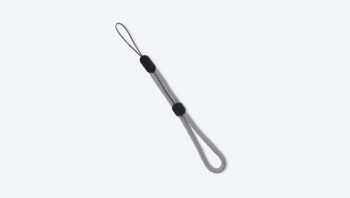

Hand Strap (C71 RFID)
SG-C71RFID-LYD-GY
Charging Cradle Basic (C71 RFID)
CRD-C71RFID-SCC
Charging Cradle (C71 RFID)
CRD-C71RFID-DOC

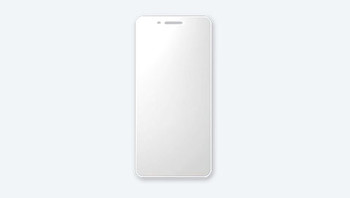

Screen Protector (C71 RFID)
SP-C71RFID
Rugged Protective Boot (C71 RFID)
RB-C71RFID-RR / RB-C71RFID-RRP
