C71 Mobile Computer (Android 11/13)
Fully Upgraded Performance, Versatile Functions EnabledChainway C71 is an industrial-grade rugged mobile computer with high extensibility. Built with Android 11/13 and Octa-Core processor, it supports abundant optional functions, including barcoding, NFC, HF, UHF, fingerprint recognition, PSAM and camera, etc. The excellent performance makes C71 ideally deployed in logistics, retail, warehousing, healthcare, power, card, parking charge to help users quickly achieve informatization management and improve operational efficiency.
C71 Mobile Computer (Android 11/13)
Fully Upgraded Performance, Versatile Functions Enabled
Chainway C71 is an industrial-grade rugged mobile computer with high extensibility. Built with Android 11/13 and Octa-Core processor, it supports abundant optional functions, including barcoding, NFC, HF, UHF, fingerprint recognition, PSAM and camera, etc. The excellent performance makes C71 ideally deployed in logistics, retail, warehousing, healthcare, power, card, parking charge to help users quickly achieve informatization management and improve operational efficiency.
features
functions
Specifications
Physical Characteristics
Dimensions
164.2 x 78.8 x 17.0 mm / 6.46 x 3.1 x 0.67 in. (for standard version)
Weight
< 288 g / 10.15 oz. (for standard version)
Display
5.2'' IPS LTPS 1920 x 1080
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 5000 mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification
Sound, LED indicator, vibrator
Expansion Slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces
USB 2.0 Type-C, OTG, Type-C headphones supported
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors
Light sensor, proximity sensor, gravity sensor
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
Operating System
Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.3GHz
RAM+ROM
3GB + 32GB
4GB + 64GB (optional)
4GB + 64GB (optional)
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 / IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±6 KV conductive discharge
Note
* Operating temperature of UHF version: -20°C to 45°C
Barcode Scanning
1D Linear Scanner
Honeywell: N4313
2D Imager Scanner
Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
UHF RFID
Engine
CM310-1 module based on Impinj E310
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X
Supports Impinj Gen2X
Antenna
Circular polarization (1.5 dBi)
Power
1W ( +5 dBm to +30 dBm adjustable)
Max Read Range
Up to 3m (depend on tags and environment)
Note
*This function is optional
Fingerprint 1
Sensor
TCS1 Capacitive
Sensing Area (mm)
12.8 × 18.0
Resolution (dpi)
508 dpi, 8-bit greylevel
Certifications
FIPS 201, STQC
Format Extraction
ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
* This function is optional
Fingerprint 2
Sensor
TLK1NC02
Sensing Area (mm)
14 X 22
Resolution (dpi)
508dpi, 256 greylevel
Certifications
FIPS 201, FBI
Format Extraction
ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
* This function is optional
Fingerprint 3
Sensor
Optical Morpho CBM-E3
Sensing Area (mm)
14 x 22
Resolution (dpi)
500 dpi, 256 greylevel
Certifications
FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, STQC
Format Extraction
ISO 19794-2/4, WSQ, ANSI 378, etc
Fake Finger Detection
Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper
Security
FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Note
* This function is optional
Camera
Front Camera
5 MP
*This function is optional
*This function is optional
Rear Camera
13 MP autofocus rear camera with flash
Facial Recognition lSO19794-5 Compatible
Facial Recognition lSO19794-5 Compatible
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Note
*This function is optional;
Note2
*NFC alternative to HF RFID.
PSAM
Protocol
ISO7816 T=0, T=1
Slots
2 slots for PSAM cards
Note
*This function is optional
HF RFID
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693
Chips
M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81)
CPU_A card,CPU_B card
ICODE II,TI2048,LRI64K
Others for customization
CPU_A card,CPU_B card
ICODE II,TI2048,LRI64K
Others for customization
Range
3-8 cm
Note
*This function is optional; HF RFID alternative to NFC.
Support & Downloads
Documents & Manuals
7/3/24
4/28/23
4/28/23
9/20/24
Accessories
Adapter-US (C71)
PWR-C71-5V2A-US
USB-C Cable (C71)
DC-C71-TypeC

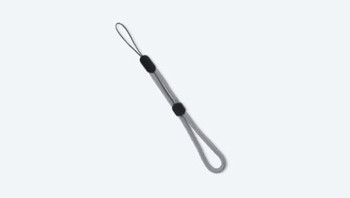

Hand Strap (C71)
SG-C71-LYD-GY
Sim Tray Ejector (C71)
SIM-TRAY-EJECTOR-C71
Charging Cradle Basic (C71)
CRD-C71-SCC

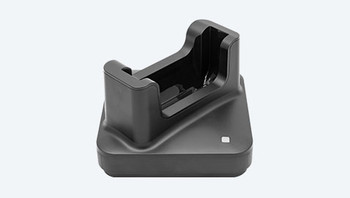

Charging Cradle (C71)
CRD-C71-DOC
Screen Protector (C71)
SP-C71
Holster (C71)
SG-C71-CPH

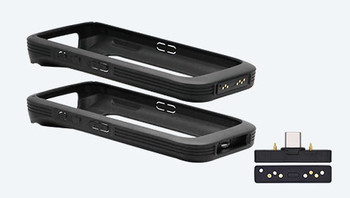

Rugged Protective Boot (C71)
RB-C71-RR / RB-C71-RRP
