C71 Optical Fingerprint Scanner (Android 11/13)
Accurate Fingerprint Reading, Reliable Identity VerificationChainway C71 is an Android rugged mobile computer, built with optical fingerprint sensor CBM-E3. It is FIPS 201 compliant, and enables secure data encryption and fake finger detection. With its powerful Octa-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, fingerprint scanner, barcoding and NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.
C71 Optical Fingerprint Scanner (Android 11/13)
Accurate Fingerprint Reading, Reliable Identity Verification
Chainway C71 is an Android rugged mobile computer, built with optical fingerprint sensor CBM-E3. It is FIPS 201 compliant, and enables secure data encryption and fake finger detection. With its powerful Octa-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, fingerprint scanner, barcoding and NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.
features
functions
Specifications
Physical Characteristics
Dimensions
164.2*78.8*17.5mm/6.46*3.10*0.69in; ( the thickest: 31.5mm/1.24in)
Weight
＜314g/11.08oz
Display
5.2'' IPS LTPS 1920x1080P
Touch Panel
Corning Gorilla Glass 3, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 5000mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification
Sound, LED indicator, vibrator
Expansion Slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces
USB 2.0 Type-C, OTG, Type-C headphones supported
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors
Light sensor, proximity sensor, gravity sensor
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
&
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
&
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
Operating System
Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
SDK
Chainway Development Kit
(based on Morpho SDK)
(based on Morpho SDK)
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core 2.3GHz
RAM+ROM
3GB + 32GB
4GB + 64GB (optional)
4GB + 64GB (optional)
Expansion
Supports up to 256GB Micro SD card
User Environment
Operating Temp
4°F to 122°F / -20°C to 50°C
Storage Temp
-40°F to 158°F / -40°C to 70°C
Humidity
5%RH - 95%RH non condensing
Drop Specification
Multiple 1.5 m / 4.92 ft drops to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft falls at room temperature
Sealing
IP65 dependent
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
1D Linear Scanner
Honeywell: N4313
2D Imager Scanner
Zebra: SE4710
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
Fingerprint Recognition
Sensor
Optical Morpho CBM-E3
Sensing Area (mm)
14x22
Resolution (dpi)
500 dpi, 256 greylevel
Certifications
FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction
ISO 19794-2/4, WSQ, ANSI 378, etc
Security
FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Camera
Rear Camera
13MP autofocus rear camera with flash
Facial Recognition lSO19794-5 Compatible
Facial Recognition lSO19794-5 Compatible
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips
M1 card (S50, S70), CPU card, NFC tags, etc
Range
2-4 cm
Support & Downloads
Documents & Manuals
4/28/23
4/28/23
Accessories
Adapter（US）-31
PWR-C71-5V2A-US-31

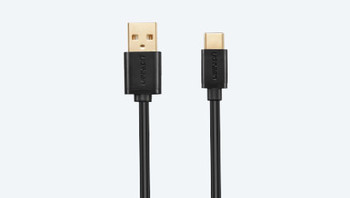

USB Cable-32
DC-C7X-TypeC
Lanyard-33
SG-C71-LYD-GY-33
Screen Protector (Optional)-377
SP-C7X-377
Rugged Rubber Boot (Optional)-267
RB-C71-RR / RB-C71-RRP-267
Charging Cradle (Optional)-375
CRD-C71-RBC/CRD-C71-RBCE-375
