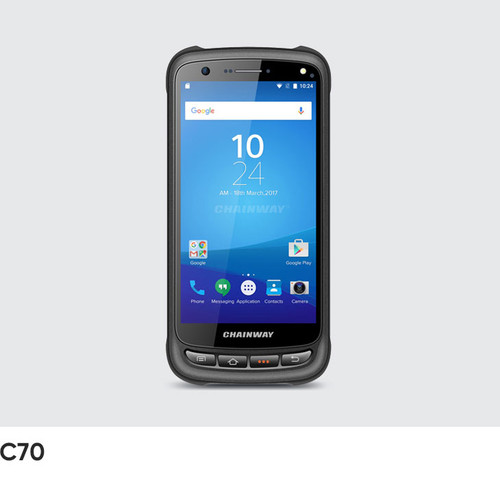

C70 Mobile Computer (Android 11)

Name: C70 Mobile Computer (Android 11)
Brand: Chainway
SKU: C70--28
Price: 549 USD
Availability: InStock

Ultra Thin & Light, Rugged Enough to Use Anywhere

Chainway C70 is an Android handheld computer with 5.2-inch high-definition screen. It is lightweight and comfortable in hand, and features optional barcode scanning, NFC, camera and other functions. This rugged computer can be applied to industries like retail, logistics, warehouse management, manufacturing, and more.

Starting at $549.00

Adding to order… The item has been added

C70 Mobile Computer (Android 11)

Ultra Thin & Light, Rugged Enough to Use Anywhere

features

functions

Specifications

Physical Characteristics

Dimensions

163.8 x 79.2 x 13.8 mm / 6.45 x 3.12 x 0.54 in.

Weight

< 242 g / 8.5 oz.

Display

5.2'' IPS LTPS 1920 x 1080

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 4000mAh
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 2-3 hours (with standard adaptor and USB cable)

Notification

Sound, LED indicator, vibrator

Expansion Slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Interfaces

USB2.0 Type-C, OTG

Audio

2 microphones，1 for noise cancellation；1 speaker；receiver

Keypad

4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key

Sensors

Light sensor, proximity sensor, gravity sensor

Communication

WLAN

IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
       CDMA2000 EVDO: BC0
       TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A

WWAN (Others)

Depending on the country's ISP

Bluetooth

Bluetooth 5.0

GNSS

GPS/AGPS, GLONASS, BeiDou; internal antenna

Note

*C70 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment

Operating System

Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.3GHz

RAM+ROM

3GB + 32GB / 4GB + 64GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp

-4°F to 122°F / -20°C to 50°C

Storage Temp

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specification

Multiple 1.8m/5.9ft drops (at least 20 times) to the
concrete across the operating temperature range

Tumble Specification

1000 x 0.5m/1.64ft falls at room temperature

Sealing

IP65 / IP67 per IEC sealing specifications

ESD

±15KV air discharge, ±6KV conductive discharge

Barcode Scanning

2D Imager Scanner

Zebra SE4710 / Honeywell N6603

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

Camera

13MP autofocus rear camera with flash, optional 5MP front camera

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range
