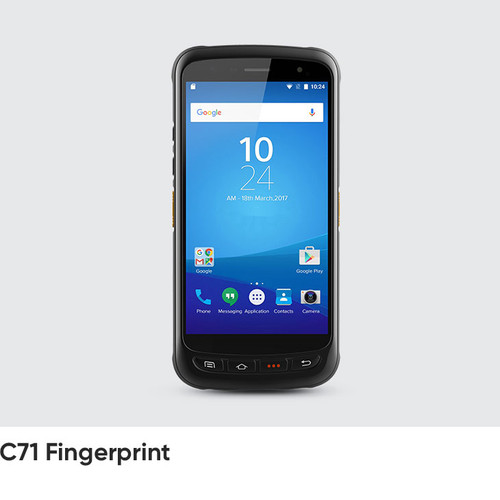

C71 Biometrics Reader (Android 11/13)
Accurate Fingerprint Reading and Facial RecognitionChainway C71 is specially designed for identity verification. Supporting optional fingerprint reading, iris scanning and facial recognition, it can accurately collect and verify biometric data of users with secure data encryption. The newly-upgrade of Octa-Core CPU brings the overall performance improvement that enables high-speed and stable possessing. Besides, it supports optional barcode scanning, NFC, etc. The handheld computer is ideal for population census, security and protection, etc.
C71 Biometrics Reader (Android 11/13)
Accurate Fingerprint Reading and Facial Recognition
Chainway C71 is specially designed for identity verification. Supporting optional fingerprint reading, iris scanning and facial recognition, it can accurately collect and verify biometric data of users with secure data encryption. The newly-upgrade of Octa-Core CPU brings the overall performance improvement that enables high-speed and stable possessing. Besides, it supports optional barcode scanning, NFC, etc. The handheld computer is ideal for population census, security and protection, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
164.2 x 78.8 x 17.5 mm / 6.46 x 3.10 x 0.69 in.
(the thickest: 24.5mm/0.96in)
(the thickest: 24.5mm/0.96in)
Weight
＜314 g / 11.08 oz.
Display
5.2'' IPS LTPS 1920 x 1080
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Main battery: Li-ion, rechargeable, 5000 mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification
Sound, LED indicator, vibrator
Expansion Slot
1 slot for SIM card, 1 slot for SIM or TF card
Interfaces
USB 2.0 Type-C, OTG, TypeC headphones supported
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors
Light sensor, proximity sensor, gravity sensor
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
WWAN (Others)
Depending on the country's ISP
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
Operating System
Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
SDK
Chainway Software Development Kit
(capacitive fingerprint based on crossmatch SDK)
(capacitive fingerprint based on crossmatch SDK)
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core 2.3GHz
RAM+ROM
3GB + 32GB
4GB + 64GB (optional)
4GB + 64GB (optional)
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the
concrete across the operating temperature range
concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 / IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
1D Linear Scanner
Honeywell: N4313
2D Imager Scanner
Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
Fingerprint 1
Sensor
TCS1
Sensing Area (mm)
12.8 × 18.0
Resolution (dpi)
508 dpi, 8-bit greylevel
Certifications
FIPS 201, STQC
Format Extraction
ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Fingerprint 2
Sensor
TLK1NC02
Sensing Area (mm)
14.0 X 22.0
Resolution (dpi)
508dpi, 256 greylevel
Certifications
FIPS 201, FBI
Format Extraction
ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
* This function is optional
Fingerprint 3
Sensor
Optical Morpho CBM-E3
Sensing Area (mm)
14 x 22
Resolution (dpi)
500 dpi, 256 greylevel
Certifications
FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, STQC
Format Extraction
ISO 19794-2/4, WSQ, ANSI 378, etc
Fake Finger Detection
Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper
Security
FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Camera
Front Camera
5 MP
Rear Camera
13 MP autofocus rear camera with flash
Facial Recognition lSO19794-5 Compatible
Facial Recognition lSO19794-5 Compatible
Note
*Front Camera function is optional
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Support & Downloads
Documents & Manuals
7/4/24
4/28/23
4/28/23
Accessories

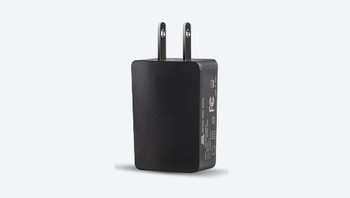

Power Supply US (C71)
PWR-C71BIO-5V2A-US
USB Charging Cable (C71)
DC-C71BIO-TypeC
Lanyard (C71)
SG-C71BIO-LYD-GY

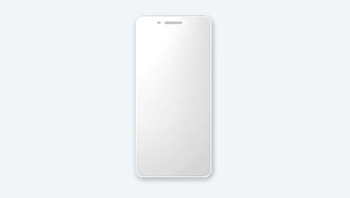

Screen Protectors (C71)
SP-C71BIO

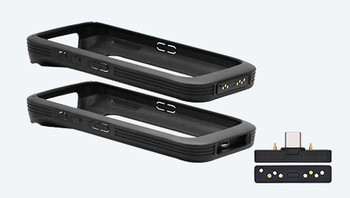

Rugged Protective Case (C71)
