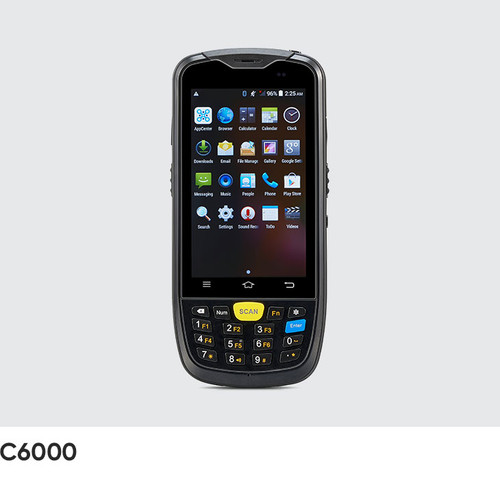

C6000 Mobile Computer (Android 10/13)

Name: C6000 Mobile Computer (Android 10/13)
Brand: Chainway
SKU: C6000--19
Price: 599 USD
Availability: InStock

Rugged and Portable with High Performance

Chainway C6000 is a wireless rugged android handheld with integrated 2D/1D/QR Zebra barcode scanning, optional Pistol-Grip, WiFi, Keyboard, and other functions. It features removable battery and powerful battery capacity. Its ruggedness and durability enables C6000 to meet the challenging requirements of logistics, warehouse management, etc and enhance working efficiency.

Android Version: (*)

Pistol Grip: (*)

Protection Plan: (*)

Starting at $599.00

Adding to order… The item has been added

C6000 Mobile Computer (Android 10/13)

Rugged and Portable with High Performance

features

functions

Specifications

Physical Characteristics

Dimensions

157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in.

Weight

292 g / 10.3 oz.

Display

4'' TN α-Si 480*800, 16.7 M colors

Touch Panel

Rugged dual touch capacitive touch panel

Power

Main battery: Li-ion, rechargeable, 4200 mAh
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)

Notification

Sound, LED indicator, vibrator

Expansion Slot

1 slot for Micro SIM card, 1 slot for MircoSD(TF) or PSAM card (optional)

Interfaces

USB 2.0, Type-C, OTG

Audio

1 microphone; 1 speaker; receiver

Keypad

3 TP soft keys, 3 side keys, numeric keyboard (Optional : 20 keys)

Sensors

Light sensor, proximity sensor, gravity sensor

Communication

WLAN

Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,
112,116,120,124,128,13

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA: B1/B2/B4/B5/B8
TD-SCDMA: A/F(B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41

WWAN (Others)

Depending on the country's ISP

Bluetooth

V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0

GNSS

GPS/AGPS, GLONASS, BeiDou, internal antenna

Note

*C6000 models being manufactured for Brazil Market, do not include 4G B7 and B38 frequency.

*C6000 Wifi-Only Model available. Wifi-Only model does not include WWAN GSM_GPRS(2G,3G,4G) and sim card socket.

Developing Environment

Operating System

Android 10.0 / 13.0; GMS, Soti MobiControl (Only Android 10.0 support); FOTA, SafeUEM supported.

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Octa-core, 2.0GHz

RAM+ROM

3GB + 32GB

Expansion

Supports up to 256GB Micro SD (TF) card

User Environment

Operating Temp

-4°F to 122°F / -20°C to 50°C

Storage Temp

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specification

Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15 KV air discharge, ±6 KV conductive discharge

Barcode Scanning

2D Imager Scanner

Zebra SE4710; Honeywell N6603

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc

Note

*This function is optional

Camera

13MP Autofocus with Flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc

Chips

M1 card (S50, S70), CPU card, NFC tags, etc

Range
