R3S Desktop RFID Reader

Compact in Form. Flexible in Deployment. Built for Your Setup.

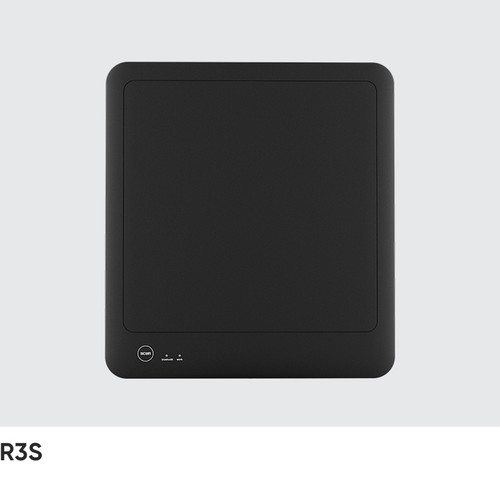

Chainway R3S Desktop RFID Reader Platform for RFID Tag Scanning, Writing, Encoding

The Chainway R3S Desktop RFID Reader features a compact all-in-one design with versatile connectivity for flexible deployment. Powered by the Impinj E Series chipset with Gen2X support, it delivers stable and accurate tag reading through optimized anti-collision algorithms and 30-step adjustable output power. Supporting Type-C, Ethernet, and Bluetooth 5.0, and compatible with Windows, Android, and iOS, the R3S is suitable for desktop use or kiosk integration in retail checkout and high-value asset management.

features
functions

Specifications

Physical Characteristics
Dimensions
255mm × 235mm × 18mm / 10.04in × 9.25in × 0.71in
Weight
Approximately 650g / 22.93oz.
Material
PC
Buzzer
1 × Buzzer
Button
1 × Scan Button
Indicator LED
1 × Power indicator (ring around the inventory button)
1 × Bluetooth indicator
1 × Operation indicator
Ethernet indicators: 1 × green LED + 1 × yellow LED (optional)
Port
Compact Version: 1 × USB Type-C port
Enhanced Version: 1 × USB Type-C port + 1 × DC power port
PoE Version: 1 × USB Type-C port + 1 × DC power port + 1 × RJ45 port
Power Supply
USB, DC, and RJ45 ports all support power supply
Communication
Ethernet interface
10 / 100 Base-T Ethernet / PoE+ support
Bluetooth
BLE 5.0
USB Type C
USB 2.0 with a transmission rate of 12Mbit/s
Developing Environment
SDK
Supports Android, iOS, and Windows systems
User Environment
Operating Temp
-4°F to 122°F (-20°C to 50°C)
Storage Temp
-40°F to 158°F (-40°C to 70°C)
Humidity
5%RH - 95%RH non condensing
Vibration
YD/T 1539-2019
Sealing
Ingress Protection (IP) 54 rating
ESD
±15kV air discharge, ±8kV contact discharge
UHF RFID
Engine
Based on Impinj E Series chip
Frequency
865-868MHz / 920-925MHz / 902-928MHz (custom-design for frequency band)
Impinj Gen2X
Supported
Protocol
EPC global Class 1 Gen 2 / ISO 18000-63 RFID
Antenna
Near-Field Antenna
Output Power
1-30, step 1dB
Fastest Read Rate
250+ tags/sec
Multi-tag Inventory
Supports reading 70+ RFID tags at once (5 seconds)
Max Read Range
>100cm (tag: Impinj M750 tag)
Optional Accessories
Accessories
Standard: 1 × USB data cable; 1 × USB cable clip; 2 × USB cable fixing screws
Optional: 1 × DC power adapter; 1 × PoE power adapter
