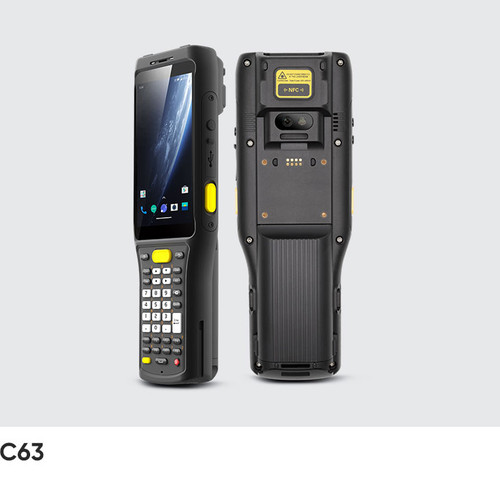

C63 Mobile Computer (Android 13)
The Flagship Keypad Handheld Built to Supercharge Industrial Data Capture.Rugged by design and refined in form, Chainway C63 offers flexible 27/37/47-key layouts for intensive input workflows. Optional ultra long-range scanning captures distant barcodes with precision. Add the ergonomic handle for enhanced grip and extended power - up to 11,700mAh. The dual-battery system supports hot-swapping and a pop-out design for nonstop operation. More than just efficient, the C63 is a dependable workhorse engineered for high-demand environments - ready to perform, shift after shift.
C63 Mobile Computer (Android 13)
The Flagship Keypad Handheld Built to Supercharge Industrial Data Capture.
Rugged by design and refined in form, Chainway C63 offers flexible 27/37/47-key layouts for intensive input workflows. Optional ultra long-range scanning captures distant barcodes with precision. Add the ergonomic handle for enhanced grip and extended power - up to 11,700mAh. The dual-battery system supports hot-swapping and a pop-out design for nonstop operation. More than just efficient, the C63 is a dependable workhorse engineered for high-demand environments - ready to perform, shift after shift.
features
functions
Specifications
Physical Characteristics
Dimensions
203.50 x 72.8 x 160 mm / 8.01 x 2.87 x 6.30in. (with pistol)
203.50 x 72.8 x 34.8 mm / 8.01 x 2.87 x 1.37in. (without pistol)
203.50 x 72.8 x 34.8 mm / 8.01 x 2.87 x 1.37in. (without pistol)
Weight
385g / 13.58oz. (device with battery)
571g / 20.14oz. (device with pistol and battery)
571g / 20.14oz. (device with pistol and battery)
Display
4-inch high definition display, 800*480
Battery
6700 mAh removable main battery, 5000 mAh optional pistol battery, support QC3.0 and RTC; Built in 50mAh backup battery, pistol battery with meter; supporting battery hot swap, improving reliability and ensuring user data security
Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 3.5 hours (charge device by standard adaptor and USB cable)
Continuous use: over 12 hours (depending on user environment)
Charging time: 3.5 hours (charge device by standard adaptor and USB cable)
Touch Panel
Multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces
USB Type-C, USB 3.1, OTG, extended thimble
Card slot
1 slot for Micro SIM card, 1 slot for TF card
Audio
1 microphone for noise cancellation; 1 speaker; 1 receiver
Keypad
Main keyboard (Optional) : 27 keys / 37 keys / 47 keys;
Side keys: 2 scan keys + 2 volume keys + 1 user-defined key
Side keys: 2 scan keys + 2 volume keys + 1 user-defined key
Sensors
Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120, 124,128,132,136,140,144,149,153,157,161,165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC,etc.
WWAN
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1700/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28/ B38/ B39/B40/B41
3G: CDMA EVDO: BC0
WCDMA: 850/900/1700/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28/ B38/ B39/B40/B41
Bluetooth
Bluetooth 5.0
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 13
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0 GHz
RAM+ROM
UFS, 4GB + 64GB
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-4℉to 122℉ / -20℃ to 50℃
Storage Temp
-40℉ to 158℉ / -40℃ to 70℃
Humidity
5% RH to 95% RH (non condensing)
Drop Specification
Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Imager Scanner
Zebra: SE4710/SE4750/SE4850/SE55/SE58 Honeywell: N6603/N6703/N6803FR; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
Camera
Rear Camera
Rear 13 MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional Accessories
Accessories
Separate handle with one button, Wrist Strap; Charging Cradle
Handle + battery (handle battery 5000 mAh, one button)
Handle + battery (handle battery 5000 mAh, one button)
Support & Downloads
Documents & Manuals
2025-08-07
Accessories
Power Adapter US (C63)
PWR-C63-5V2A-US
Screen Protector (C63)
SP-C63

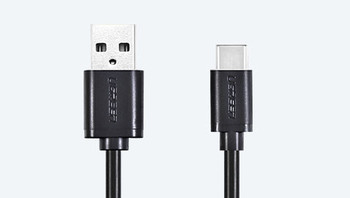

USB-C Cable (C63)
DC-BK-TypeC-C63

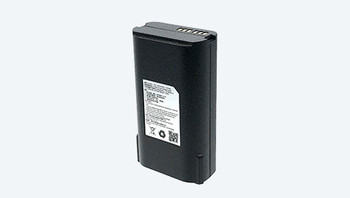

Main Battery (C63)
BTRY-C63-67MA
Charging Cradle for Device (C63)
CRD-C63-RBC

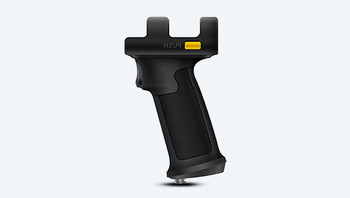

Pistol Grip (C63)
RB-C63-PS
Pistol Grip Battery Expansion (C63)
BTY-C63-PB
