MC51 5G Mobile Computer (Android 14)
Mobile Work, Made ComfortableChainway MC51 is our latest high-performance 5G handheld computer, designed to empower frontline workers with cutting-edge technology. Its powerful processor ensures fast application performance and seamless data processing. The expansive 6-inch HD display delivers crystal-clear visibility for every task, while advanced 5G and Wi-Fi 6E enable fast, reliable data transmission. Built for long-term stability, the MC51 comes with over five years of guaranteed device supply and technical support, making it the ultimate mobile office solution.
MC51 5G Mobile Computer (Android 14)
Mobile Work, Made Comfortable
Chainway MC51 is our latest high-performance 5G handheld computer, designed to empower frontline workers with cutting-edge technology. Its powerful processor ensures fast application performance and seamless data processing. The expansive 6-inch HD display delivers crystal-clear visibility for every task, while advanced 5G and Wi-Fi 6E enable fast, reliable data transmission. Built for long-term stability, the MC51 comes with over five years of guaranteed device supply and technical support, making it the ultimate mobile office solution.
features
functions
Specifications
Physical Characteristics
Dimensions
161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61 in.
Weight
297g / 10.48oz. (device with battery)
Display
6-inch high definition display (18:9), 1440 x 720
Battery
5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery backup
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces
USB Type-C, USB 3.1, OTG
Card slot
1 for SIM card, 1 for SIM or TF card, Supports eSIM (optional)
Audio
2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver
Keypad
Power key, 2 scan keys, volume (+/-) keys, 1 multifunctional key
Sensors
G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G tri-band, IPV4, IPV6; 2*2 MIMO antennas
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124,
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124,
WWAN (Europe, Asia)
2G: GSM / EDGE / GPRS (850/900/1800)
3G: WCDMA (B1/B5/B8)
4G: FDD-LTE (B1/B3/B5/B7/B8/B20/B28A/B28B)
TDD-LTE (B34/B38/B39/B40/B41)
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/
N77/N78/N79
3G: WCDMA (B1/B5/B8)
4G: FDD-LTE (B1/B3/B5/B7/B8/B20/B28A/B28B)
TDD-LTE (B34/B38/B39/B40/B41)
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/
N77/N78/N79
WWAN (America)
2G: GSM/EDGE/GPRS(850/1900)
3G: WCDMA(B2/B4/B5)
4G: FDD-LTE B2/B4/B5/B7/B12/B13/B25/B26/B28;
TDD-LTE B38/B41;
5G: N2/N3/N5/N7/N12/N13/N25/N26/N28/N38/
N41/N77/N78
3G: WCDMA(B2/B4/B5)
4G: FDD-LTE B2/B4/B5/B7/B12/B13/B25/B26/B28;
TDD-LTE B38/B41;
5G: N2/N3/N5/N7/N12/N13/N25/N26/N28/N38/
N41/N77/N78
Bluetooth
Bluetooth 5.2
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 14
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Qualcomm Octa-core, 2.4GHz
RAM+ROM
UFS: 4GB + 64GB / 6GB + 128GB (optional) /
8GB + 128GB (optional) / 8GB + 256GB (optional)
8GB + 128GB (optional) / 8GB + 256GB (optional)
Expansion
Supports up to 256GB TF card
(Supports Extreme Micro SD Card 512GB)
(Supports Extreme Micro SD Card 512GB)
User Environment
Operating Temp
-4°F to 122°F / -20°C to +50°C
Storage Temp
-40°F to 158°F / -40°C to +70°C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range
MIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range
MIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range
Tumble Specification
1000 x 0.5m / 1.64ft. falls at room temperature
Sealing
IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge Communication
Barcode Scanning
2D Scanner
Zebra: SE4710; SE5500; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note
* This function is optional
UHF RFID
Note
*For detailed specification, please check MC51 UHF datasheet
Camera
Front Camera
5MP
Rear Camera
16MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional Accessories
Accessories
USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc.
*See details in accessory guide
*See details in accessory guide
Support & Downloads
Accessories
Adapter-US (MC51)
PWR-18W-US-MC51
USB-C Cable (MC51)
DC-BK-TypeC-MC51
Battery (MC51)
BTRY-C51-50MA
Charging Cradle (MC51)
CRD-C51-RBC
4-Slot Battery Cradle (MC51)
CRD-C51-MBC

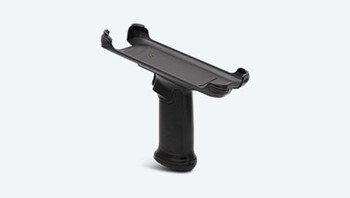

Pistol Grip (MC51)
