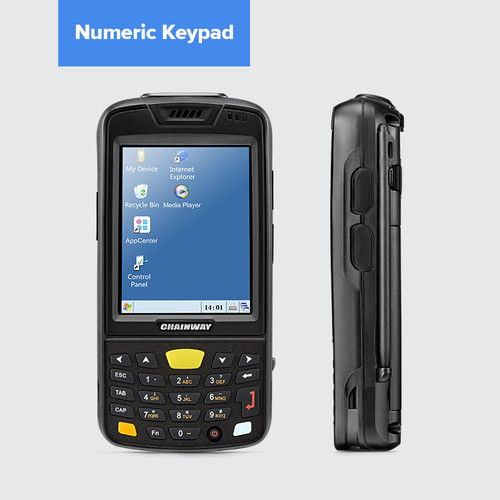

C3000 Handheld Computer (Discontinued)
WinCE Rugged Handheld Computer with Various FunctionsChainway C3000 is a WindowsCE-based rugged handheld computer. It can be integrated with a variety of data capture functions including barcode scanning, LF/HF RFID reading, fingerprint scanning, etc. This handheld computer can be widely applied to a variety of industries, such as retail, warehouse management, asset management, fleet management, power meter reading, livestock and so forth.
C3000 Handheld Computer (Discontinued)
WinCE Rugged Handheld Computer with Various Functions
Chainway C3000 is a WindowsCE-based rugged handheld computer. It can be integrated with a variety of data capture functions including barcode scanning, LF/HF RFID reading, fingerprint scanning, etc. This handheld computer can be widely applied to a variety of industries, such as retail, warehouse management, asset management, fleet management, power meter reading, livestock and so forth.
Specifications
Physical Characteristics
Dimensions
154mm x 77mm x 31mm/ 6.06 x 3.03 x 1.22in
Weight
345g/ 12.17oz
Display
3.5’’ QVGA (240*320), 6.5M colors
Touch Panel
Rugged resistive touch panel
Power
Main battery: Li-ion, 3200mAh
Pistol battery: Li-ion, 5200mAh (Optional)
Pistol battery: Li-ion, 5200mAh (Optional)
Expansion Slot
1 MicroSD(TF)
Interfaces
MicroUSB(OTG)
Audio
0.5W speaker
Keypad
Numeric / Qwerty
Communication
WLAN
IEEE802.11 a/b/g/n
Bluetooth
Bluetooth 2.0+EDR
Developing Environment
Operating System
Windows Embedded CE 6.0
SDK
Chainway Software Development Kit
Language
C++, C#, VB.NET
Tool
Visual Studio 2005/2008
Performance
CPU
Cortex-A8 800MHz
RAM+ROM
256MB+4GB
Expansion
Supports up to 32GB Micro SD card
User Environment
Operating Temp
-4°F to 122°F / -20°C to 50°C
Storage Temp
-40°F to 158°F / -40°C to 70°C
Humidity
5%RH - 95%RH non condensing
Drop Specification
Multiple 1.5m drops to concrete across the operating temperature range
Tumble Specification
1000 x 0.5m/1.64ft falls at room temperature
Sealing
IP65
Barcode Scanning
1D Linear Scanner
Honeywell N4313 / Zebra SE965
2D Imager Scanner
Zebra SE4500
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec;MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc
Note
*This function is optional
LF RFID
Frequency
125kHz, 134kHz (FDX-B / HDX)
Protocol
ISO11784/5,ISO18000-2
Chips
R/O ID card, eg EM4100/4200, TK4100
R/W ID card, eg EM4305/HITAG S
Animal tags
Others for customization
R/W ID card, eg EM4305/HITAG S
Animal tags
Others for customization
Range
3-8cm
Note
*This function is optional
Camera
Camera
5MP Autofocus
LF RFID (with external antenna)
Frequency
134kHz (FDX-B+HDX)
Protocol
ISO11784/5
Chips
Animal tags
Others for customization
Others for customization
Range
3-12cm, external antenna
3-20cm, with a 75cm extension antenna
3-20cm, with a 75cm extension antenna
Note
*This function is optional
HF RFID
Frequency
13.56MHz
Protocol
ISO14443A/B,ISO15693
Chips
M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81)
CPU_A card,CPU_B card
ICODE II,TI2048,LRI64K
Others for customization
CPU_A card,CPU_B card
ICODE II,TI2048,LRI64K
Others for customization
Range
3-8cm
Note
*This function is optional
