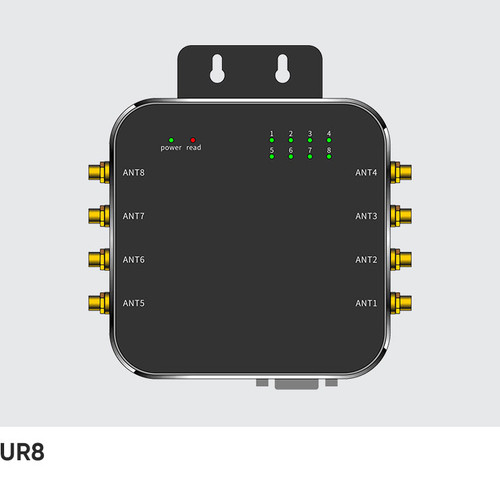

UR8 Fixed UHF RFID Reader
More Ports, Superior Performance, Perfect for Complex DeploymentsThe UR8 is a powerful 8-port fixed RFID reader, built with the advanced Impinj E510 chip and supporting Impinj Gen2X for outstanding integration, stability, and reliability. Its robust electromagnetic interference resistance and efficient heat dissipation ensure reliable performance in both indoor and outdoor environments. Perfect for demanding scenarios, the UR8 excels in applications such as warehousing, archive management, library management, banking, apparel, jewelry, laundry, production lines, medical equipment cabinets, and unattended retail.
UR8 Fixed UHF RFID Reader
More Ports, Superior Performance, Perfect for Complex Deployments
The UR8 is a powerful 8-port fixed RFID reader, built with the advanced Impinj E510 chip and supporting Impinj Gen2X for outstanding integration, stability, and reliability. Its robust electromagnetic interference resistance and efficient heat dissipation ensure reliable performance in both indoor and outdoor environments. Perfect for demanding scenarios, the UR8 excels in applications such as warehousing, archive management, library management, banking, apparel, jewelry, laundry, production lines, medical equipment cabinets, and unattended retail.
UR8 Fixed UHF RFID Reader
The UR8 is a powerful 8-port fixed RFID reader, built with the advanced Impinj E510 chip and supporting Impinj Gen2X for outstanding integration, stability, and reliability. Its robust electromagnetic interference resistance and efficient heat dissipation ensure reliable performance in both indoor and outdoor environments. Perfect for demanding scenarios, the UR8 excels in applications such as warehousing, archive management, library management, banking, apparel, jewelry, laundry, production lines, medical equipment cabinets, and unattended retail.
Specifications
Physical Characteristics
Dimensions
102.8 mm(L) x 102.8 mm(W) x 34.2 mm(H)
Weight
450 g / 15.87 oz. (without antenna)
Material
Aluminium alloy
Input Voltage
DC 9V – 12V
Standby Current
< 30mA
Comm Interface
RS-232 / RJ45
GPIO
2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve)
Baud Rate
115200 bps
Cooling Mode
Air cooling
Work Current
800mA +/-5% @ DC 12V Input
Ethernet interface
10/100 Base-T Ethernet (RJ45)
User Environment
Operating Temp
-13℉ to 149℉ / -25 °C to 65 °C
Storage Temp
-40℉ to 185℉ / -40 °C to 85 °C
Humidity
5% RH to 95% RH (non condensing)
UHF RFID
Engine
CM510-8 module based on Impinj E510
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Fastest Read Rate (circular polarization)
550+ tags/sec
Output Power
1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, support +10~+33dBm adjustable)
2W Optional (33dBm, support +10~+33dBm adjustable)
Output Power Precision
+/- 1dB
Output Power Flatness
+/- 0.2dB
Receive Sensitivity
< -78dBm
RSSI
Supported
Ambient Temp Monitor
Supported
Antenna Detector
Supported
Antenna Port
Supporting a variety of antennas, such as 6dBic, 9dBic
Communication Mode
8 channel 50Ω SMA port
