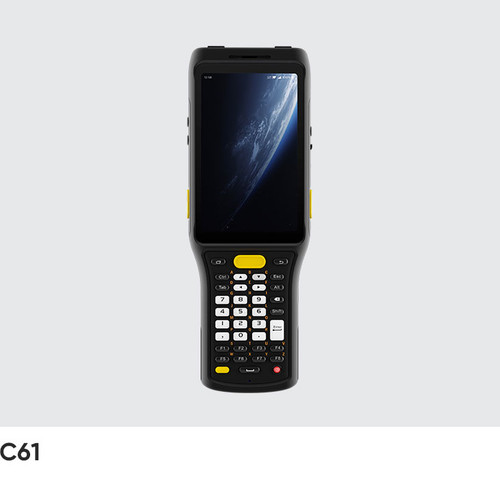

C61 Cold Storage Mobile Computer (Android 11/13)

Superior Performance for Cold Chain Warehousing
C61 Cold Storage Mobile Computer (Android 11/13)
The Chainway C61-Cold is an industrial-grade mobile computer designed specifically for cold-chain warehousing. Engineered to operate in extreme conditions with temperatures as low as -30°C (-22°F) and high humidity, it features a 6400mAh low-temperature-resistant battery and a specialized anti-condensation screen. The device supports optional UHF and NFC functionalities and features high-powered Wi-Fi 6-ready. Its rugged design and high performance make it an ideal solution for boosting efficiency in challenging cold chain environments.
features
functions

Specifications

Physical Characteristics
Dimensions
202.0 x 72.5 x 32.0mm / 7.95 x 2.85 x 1.26in
Weight
370g / 13.05oz. (SE4710) ; 404g / 14.25oz. (SE4850)
Display
4-inch industrial-grade low-temperature-resistant capacitive touch screen, gloves and wet hands supported
800*480
Battery
6400 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC; Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security
Continuous use: 5.5 hours (continuous sca
Touch Panel
Multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces
USB Type-C, USB 3.1, OTG, extended thimble
Card slot
1 slot for SIM card, 1 slot for TF card
Audio
2 microphones, 1 for noise cancellation; 2 speakers; receiver
Keypad
Main keyboard (optional) : 27 keys / 37 keys / 47 keys; Side keys: 2 scan keys + 2 volume keys + 1 user-defined key
Sensors
Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120, 124,128,132,1
WWAN (Europe, Asia)
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
       WCDMA: 850/900/1900/2100 MHz
       TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America)
2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0 GHz
RAM+ROM
3GB + 32GB / 4GB + 64GB
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-22°F to 122°F / -30°C to 50°C
Storage Temp
-40°F to 158°F / -40°C to 70°C
Humidity
5%RH - 95%RH non condensing
Drop Specification
Multiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5m / 1.64ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
± 15KV air discharge, ± 8KV conductive discharge
UHF RFID
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Circular Polarized Antenna (4 dBi)
Power
1W (30 dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)
Fastest Read Rate
1300+ tags/sec
Communication Mode
Pin Connector
Max Read Range
27m (Impinj MR6 tag, size70 x 15mm)
26m (Impinj M750 tag, size70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Note2
*This function is optional
Camera
Rear Camera
Rear 13 MP Autofocus with flash
NFC
Frequency
13.56MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4cm
