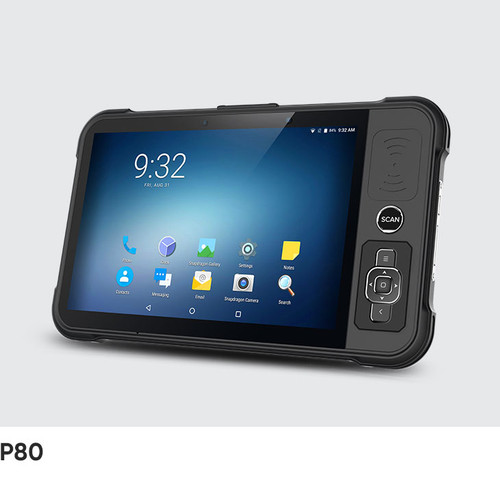

P80 Industrial Tablet (Android 13)
More Power, More Features and More VersatilityChainway P80 with Android 13 is a newly upgraded rugged tablet that has abundant functions. With its powerful Octa-core CPU, 8-inch high definition screen, 8700mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, fingerprint recognition, NFC, etc., you can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, etc.
P80 Industrial Tablet (Android 13)
More Power, More Features and More Versatility
Chainway P80 with Android 13 is a newly upgraded rugged tablet that has abundant functions. With its powerful Octa-core CPU, 8-inch high definition screen, 8700mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, fingerprint recognition, NFC, etc., you can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
250.8 x 152.0 x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version )
Weight
680 g / 23.99 oz. ( for standard version )
Display
8'' IPS LTPS 1920 x 1200
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator
Power
Main battery: Li-ion, rechargeable, 8700 mAh
Standby: over 500 hours
Continuous use: over 10 hours (depending on user environment)
Charging time: 5-7 hours (with standard AC adaptor and USB cable)
Standby: over 500 hours
Continuous use: over 10 hours (depending on user environment)
Charging time: 5-7 hours (with standard AC adaptor and USB cable)
Expansion Slot
1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots
Interfaces
USB 2.0 Type-C, OTG
Audio
1 microphone; 1 speaker
Keypad
1 front key, 1 volume key, 1 power key, direction key (Optional)
Sensors
Gravity sensor; gyroscope; geomagnetic sensor; light / proximity sensor
Communication
WLAN
Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128, 132,136,140,144,149,
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128, 132,136,140,144,149,
WWAN
2G: 850/900/1800/1900MHz, GPRS, EDGE
3G: CDMA EVDO: BC0
WCDMA: B1/B2/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28
3G: CDMA EVDO: BC0
WCDMA: B1/B2/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 13; GMS&AER, 90-day security updates, FOTA, Soti MobiControl, SafeUEM supported
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0GHz; GMS&AER
RAM+ROM
4GB + 64GB
Expansion
Supports up to 256GB Micro SD card
User Environment
Operating Temp
-4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Tumble Specification
500 x 0.5 m / 1.64 ft falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
Scan engine
Zebra SE4710; Honeywell HS7
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.
Note
* This function is optional
UHF RFID
Engine
CM710-1 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Circular polarization (3 dBi)
Power
1W (30 dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33dBm, for Latin America, etc.) R/W
2W Optional (33dBm, for Latin America, etc.) R/W
Fastest Read Rate (circular polarization)
900+ tags/sec
Max Read Range
Up to 10 m (open outdoors, Impinj MR6 tag);
Note
* Ranges and rates depend on tags and environment.
* This function is optional
* This function is optional
Fingerprint 1
Sensor
TCS1 Capacitive
Sensing Area (mm)
12.8 × 18.0
Resolution (dpi)
508 dpi, 8-bit greylevel
Certifications
FIPS 201, STQC
Format Extraction
ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communicationchannel
Note
* This function is optional
Fingerprint 2
Sensor
TLK1NC02
Sensing Area (mm)
14.0 X 22.0
Resolution (dpi)
508dpi, 256-bit greylevel
Certifications
FIPS 201, FBI
Format Extraction
ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communicationchannel
Note
* This function is optional
Fingerprint 3
Sensor
Optical Morpho CBM-E3
Sensing Area (mm)
14.0 X 22.0
Resolution (dpi)
500 dpi, 256 greylevel
Certifications
FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201complaint, STQC
Format Extraction
ISO 19794-2/4, WSQ, ANSI 378, etc
Fake Finger Detection
Latex, GeLatin, Plasticine, Kapton, Transparent Film,Silicone, Rubber, Play-doh, Graphite Or Paper
Security
FIPS 140-2 level 2, multiple security methods available,including image and templates encryption, templatesignature, secure tunneling, etc.
Note
* This function is optional
Camera
Front Camera
5 MP
Rear Camera
13 MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
0-4 cm
Support & Downloads
Documents & Manuals
12/3/24
4/29/24
4/29/24
Accessories
Adapter-CN (P80)
PWR-P80-5V2A-CN
Adapter-EU (P80)
PWR-P80-5V2A-EU
Adapter-UK (P80)
PWR-P80-5V2A-UK
Adapter-US (P80)
PWR-P80-5V2A-US

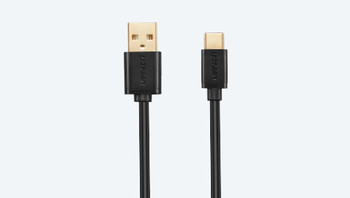

USB-C Cable (P80)
