MC62 Mobile Computer (Android 13)
More Advanced Android OS, More Flexible Keyboard Design, Stronger Protection Level and Battery Life
Chainway MC62 is a lightweight and portable high-performance mobile computer. With Android 13, octa-core processor, 4-inch touchscreen and 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports barcode scanning, NFC, 13MP camera, multiple wireless connections, and features IP67 protection rating, 1.5 meters drop resistance. The mobile computer is thus widely applicable in various fields including warehousing, logistics, retail, finance, transportation, and manufacturing, helping users significantly improve work efficiency.
features
functions
Specifications
Physical Characteristics
Dimensions
163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in
Weight
256g / 9.03oz (device with battery)
Display
4-inch, 480 x 800
Touch Panel
Multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Power
5000mAh removable battery, support quick charge
Expansion Slot
1 slot for SIM card, 1 slot for SIM or TF card
Interfaces
USB Type-C, USB 2.0, OTG
Audio
2 microphones, 1 for noise reduction, back; 1 speaker; receiver
Keypad
Main keypad , 2 scan keys, multi-function keys
Sensors
Gravity sensor, distance sensor, light sensor; Gyroscope (optional), geomagnetic sensor (optional)
Communication
WLAN
802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband( 2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA
WWAN
2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8)
TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 /
B28A / B28B)
3G: WCDMA (B1 / B2 / B4 / B5 / B8)
TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 /
B28A / B28B)
Vo-LTE
Support
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo
Developing Environment
Operating System
Android 13; GMS
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0GHz
RAM+ROM
4GB + 64GB
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Scanner
Zebra: SE4710; CM60
1D Symbologies
UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.
Note
*This function is optional
Camera
Front Camera
5MP
Rear Camera
13MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Support & Downloads
Videos
5/9/23
5/9/23
Accessories

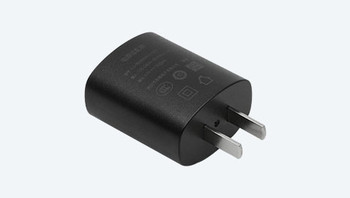

Adapter-CN (MC62)
PWR-C62-5V2A-CN

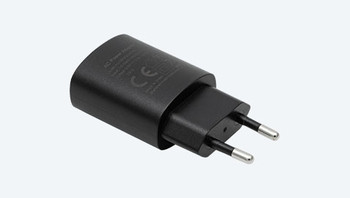

Adapter-EU (MC62)
PWR-C62-5V2A-EU

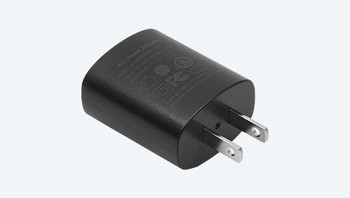

Adapter-US (MC62)
PWR-C62-5V2A-US

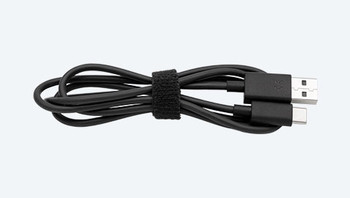

USB-C Cable (MC62)
DC-BK-TypeC-MC62
Hand Strap (MC62)
RB-C62-HS
Battery (MC62)
BTRY-C62-50MA
Charging Cradle (MC62)
CRD-C62-RBC
4-Slot Battery Charger (MC62)
CRD-C62-MBC

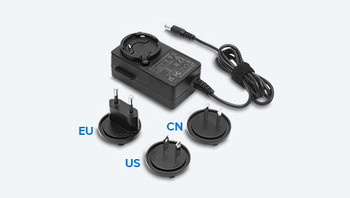

Cradle Power Adapter (MC62)
DCPWR-12V3A-CN/EU/US

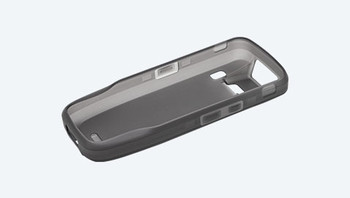

Rugged Protective Boot (MC62)
RB-C62-RR
Pistol Grip (MC62)
TRG-C62-PG
