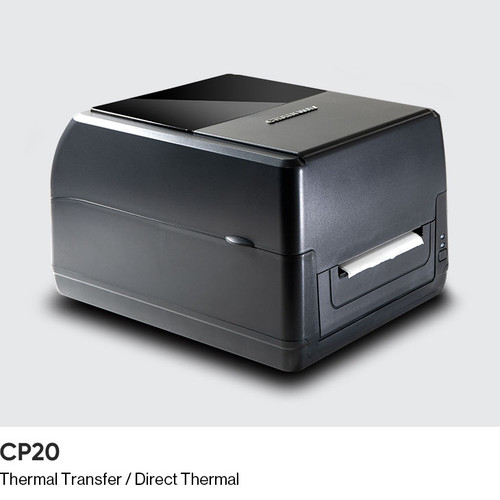

CP20 Barcode Printer
Excellent Barcode Printing, Efficient and Easy to Operate
Chainway CP20 is a barcode printer with exceptional printing performance and supports thermal transfer and thermal printing methods. The maximum printing speed is 152mm/s (6ips). CP20 provides a wide variety of communication interfaces, supports printer languages of major brands, and comes with adjustable print head pressure and ribbon pleat to ensure top-quality printing results. CP20 fully meets the high-quality printing needs of scenarios in retail, express delivery, warehousing, manufacturing and other industries.
features
functions
Specifications

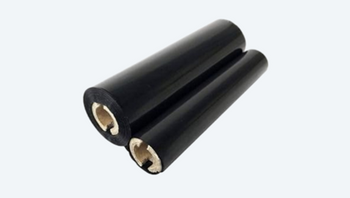

Ribbon
Width
110mm
Capacity
Max .300m
Media
Types
Continuous, gap, black mark, fan-fold and punched hole
Width
25.4 ~ 118mm (1.0 ~ 4.6)
Thickness
0.06 ~ 0.254mm (2.36 ~ 10mil)
Core Diameter
25.4 ~ 76.2mm (1 ~ 3)
Label Length
10 ~ 1778mm (0.39 ~ 70)
Label Roll Capacity
127mm (5) OD (External Diameter)
Printing
Printing Method
Thermal transfer / Direct thermal
Resolution
203dpi / 300dpi
Max
152mm (6)/s, 127mm (5)/s
Max
104mm (4.09)
Max
1778mm (70), 889mm (35)
Physical Characteristics
Dimensions
282mm × 232mm × 171mm
Weight
2.56kg / 90.30oz.
Interfaces
Stardard version: USB
Optional: Serial / LAN / Wi-Fi / Bluetooth
Optional: Serial / LAN / Wi-Fi / Bluetooth
Sensors
Gap sensor, cover opening sensor, black mark sensor, ribbon sensor
Power Supply
AC100-240V, 2A, 50-60Hz
DC 24V / 2.5A / 60W
DC 24V / 2.5A / 60W
Developing Environment
SDK
Windows / iOS / Android / Linux / Mac
Performance
Storage
8MB Flash Memory / 8MB SDRAM
Expansion
Flash Memory can be expanded Max. 4GB
User Environment
Operating Temp
5°C ~ 40°C (41°F ~ 104°F), humidity 25% to 85% non-condensing
Storage Temp
-40°C to 60°C (-40°F to 140°F), humidity 25% to 85% non-condensing
Other Specification (Printer)
Processor
32- bit CPU
Driver
Windows
Print Head Life
30km or 3months
Internal Fonts
8 alpha - numeric bitmap fonts, Windows fonts are downloadable from software
Barcodes
1D: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN -8, EAN -13, EAN-128, UPC - A , UPC-E , EAN and UPC 2(5) digits add - on, MSI. PLESSEY, POSTNET, China POST, GS1DataBar, Code 11
2D: PDF -417, Maxi
2D: PDF -417, Maxi
Rotation
0°, 90°, 180°, 270°
Emulation
TSPL, EPL, ZPL, DPL
Factory Options
Serial / Lan / wifi / Bluetooth
Dealer Options
External label roll holder
Peeler module
Cutter module
Peeler module
Cutter module
Agency Approval
FCC, CE, CCC, RoHS
