MC50 5G Mobile Computer (Android 12/14)
5G · Android 12/14 · IP67Chainway MC50 is our newly launched 5G high-performance mobile computer. The top-of-the-class configuration comprises advanced Android 12/14, and optional ultra-large memory. It integrates barcode scanning, NFC, dual camera, and multiple wireless data connections, as well as 6-inch HD screen, high-capacity removable battery and IP67 sealing. It can bring a new level of cost efficiency to a broad range of industries including retail, logistics, and warehousing.
MC50 5G Mobile Computer (Android 12/14)
5G · Android 12/14 · IP67
Chainway MC50 is our newly launched 5G high-performance mobile computer. The top-of-the-class configuration comprises advanced Android 12/14, and optional ultra-large memory. It integrates barcode scanning, NFC, dual camera, and multiple wireless data connections, as well as 6-inch HD screen, high-capacity removable battery and IP67 sealing. It can bring a new level of cost efficiency to a broad range of industries including retail, logistics, and warehousing.
features
functions
Specifications
Physical Characteristics
Dimensions
161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61in.
Weight
280g-288g / 9.88oz-10.16oz. (device with battery)
Display
6-inch high definition display (18:9), 1440 x 720
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
5000mAh removable main battery, support QC3.0 and RTC
Notification
Sound, LED indicator, vibrator
Interfaces
USB Type-C, USB 3.1, OTG
Card slot
1 for SIM card, 1 for SIM or TF card
Audio
2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver; 1 multifunctional key
Keypad
Power key, 2 scan keys, volume (+/-) keys
Sensors
G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; 2x2 MU-MIMO;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels:
2.4G (channel 1~13),
5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112,
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels:
2.4G (channel 1~13),
5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112,
WWAN
2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41
5G: N1/N3/N8/N28/N41/N78/N79
3G: 850/900/1900/2100MHz
4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41
5G: N1/N3/N8/N28/N41/N78/N79
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS / AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 12/14; GMS&AER
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0GHz
RAM+ROM
4GB + 64GB / 6GB + 128GB (Optional) / 8GB + 128GB (Optional)
Expansion
Supports up to 256GB TF card
User Environment
Operating Temp
-4°F to 122°F / -20°C to +50°C
Storage Temp
-40°F to 158°F / -40°C to +70°C
Humidity
5%RH - 95%RH non condensing
Drop Specification
Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range
MIL-STD-810H(SGS Test): Multiple 1.5m drops (at least 20 times) to theplate across the operating temperature range
MIL-STD-810H(SGS Test): Multiple 1.5m drops (at least 20 times) to theplate across the operating temperature range
Tumble Specification
1000 x 0.5m / 1.64ft. falls at room temperature
Sealing
IP67 per IEC sealing specifications
ESD
±15KV air discharge, ±8KV conductive discharge
Barcode Scanning
2D Scanner
Zebra：SE4710/SE4750/SE5500；CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note
* This function is optional
Camera
Front Camera
5MP
Rear Camera
16MP Autofocus with flash
NFC
Frequency
13.56MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4cm
Support & Downloads
Accessories
Adapter-CN (MC50)
PWR-18W-CN-MC50

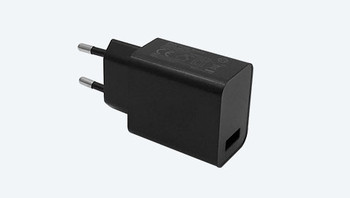

Adapter-EU (MC50)
PWR-18W-EU-MC50
Adapter-UK (MC50)
PWR-18W-UK-MC50
Adapter-US (MC50)
PWR-18W-US-MC50

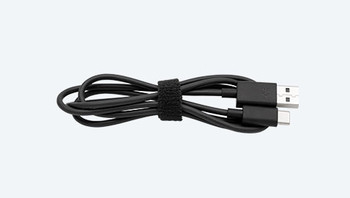

USB-C Cable (MC50)
DC-BK-TypeC-MC50
Battery (MC50)
BTRY-C50-50MA

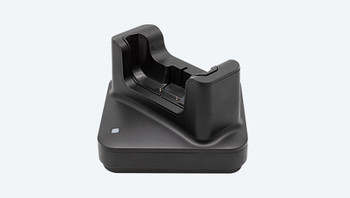

Charging Cradle (MC50)
CRD-C50-RBC
Charging Cradle Basic (MC50)
CRD-C50-SCC
4-Slot Battery Cradle (MC50)
CRD-C50-MBC
Charging Cradle w/ Spare Battery (MC50)
CRD-C50-SCB

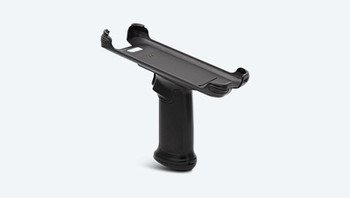

Pistol Grip (MC50)
RB-C50-PS

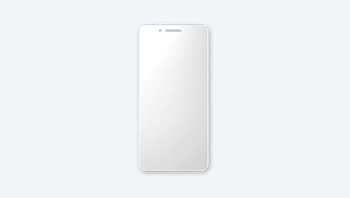

Screen Protector (MC50)
SP-C50
