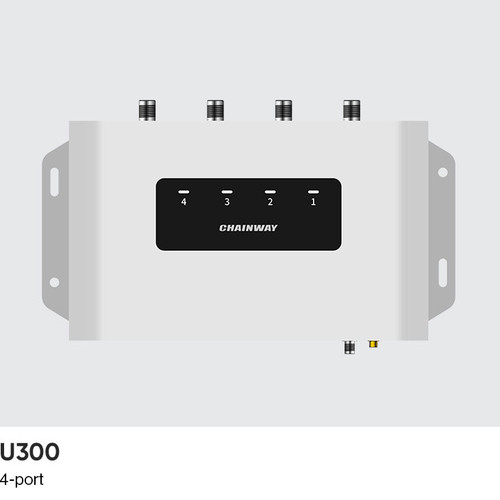

U300 Fixed RFID Reader (Android 11)
Android 11 OS, Multiple Interfaces, More Powerful UHF RFID Performance
Chainway U300 is a high-performance fixed RFID reader. Adopting Android 11 operating system, 2.0GHz quad-core CPU, U300 possesses powerful data processing capabilities. Based on the Impinj E710 chip and supports the Impinj Gen2X, the reader has stronger UHF performance. The reader Integrates RS232, RJ45, HDMI and other interfaces, and supports DC, POE, POE+ power supplies. U300 can meet the application needs in complex environments such as warehousing, file management, library management, production line management, medical device cabinet, unmanned retail, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
247 x 151 x 35mm / 9.72 x 5.94 x 1.38in
Weight
1000g / 35.27oz (Host Only)
Material
Aluminum Alloy
Input Voltage
DC 10V – 24V
Standby Current
< 140mA
Comm Interface
1 x RS-232 ，1 x RJ45，1 x USB Host，1 x USB Device
GPIO
4 x input optocouplers, 4 x output optocouplers, with isolation
Baud Rate
115200bps
Cooling Mode
Air Cooling
Work Current
600mA +/-5% @ DC 24 V Input
Display Interface
HDMI Type A, supports 720p HD video output
Communication
Ethernet interface
10/100 Base-T Ethernet (RJ45)
WLAN
IEEE802.11 b/g/n, 2.4G
Bluetooth
Bluetooth 4.0
Developing Environment
Operating System
Android 11
SDK
Support Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
User Environment
Operating Temp
-25°C to 65 °C / -13℉ to 149℉
Storage Temp
-40°C to 85°C / -40℉ to 185℉
Humidity
10% - 95%
Performance
CPU
Quad - Core 2.0GHz
RAM+ROM
2GB + 16GB
UHF RFID
Engine
Based on Impinj E710
Frequency
865-868MHz / 920-925MHz / 902-928MHz
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Supports Impinj Gen2X
Supports Impinj Gen2X
Antenna
Support multiple antennas, such as 6dBic, 9dBic, etc.
Power
DC (24V)、POE (802.3af 13W)、POE+ (802.3at 25.5W)
Output Power
1W (30dBm, support +5~+30dBm adjustable, POE / DC power supply)
Optional 2W (33dBm, support +10~+33dBm adjustable, for Latin America, etc., POE+ / DC power supply)
Optional 2W (33dBm, support +10~+33dBm adjustable, for Latin America, etc., POE+ / DC power supply)
Output Power Precision
+/- 1dB
Output Power Flatness
+/- 0.2dB
Receive Sensitivity
< -84dBm
RSSI
Support
Ambient Temp Monitor
Support
Fastest Read Rate
Up to 950 tags/s
Antenna Detector
Support
Antenna Port
4 / 8 Channel 50Ω RF Connector RP-TNC Female
