MC95 Mobile Computer (Android 12)
Powerful Performance. More Durable and Cost-effective.Chainway MC95 is a new high-performance and highly durable mobile computer. With Android 12 operating system, high-performance octa-core processor, optional large memory, 5.5-inch HD screen, 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports optional barcode scanning, NFC, front and rear cameras, and features IP68 protection rating, 1.5 meters drop resistance. This device perfectly adapts to applications for retail, logistics, warehousing, electricity, finance, transportation, manufacturing, etc.
MC95 Mobile Computer (Android 12)
Powerful Performance. More Durable and Cost-effective.
Chainway MC95 is a new high-performance and highly durable mobile computer. With Android 12 operating system, high-performance octa-core processor, optional large memory, 5.5-inch HD screen, 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports optional barcode scanning, NFC, front and rear cameras, and features IP68 protection rating, 1.5 meters drop resistance. This device perfectly adapts to applications for retail, logistics, warehousing, electricity, finance, transportation, manufacturing, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
160.0 x 75.0 x 16.4mm / 6.30 x 2.95 x 0.65in.
Weight
288g / 10.16 oz (device with battery)
Display
5.5'' , 1440 x 720
Touch Panel
Multi-touch panel, gloves and wet hands supported
Power
5000mAh removable main battery, support quick charge
Notification
Sound, LED indicator, vibrator
Expansion Slot
1 slot for SIM card, 1 slot for SIM or TF card
Interfaces
USB Type-C, USB 2.0, OTG
Audio
2 microphones, 1 for noise cancellation; 2 speakers; receiver
Keypad
Power key, 2 scan keys, volume (+/-) keys
Sensors
Light sensor, proximity sensor, gravity sensor
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA
WWAN
2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8)
TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 /
B20 /B28A / B28B)
&nb
3G: WCDMA (B1 / B2 / B4 / B5 / B8)
TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 /
B20 /B28A / B28B)
&nb
Bluetooth
Bluetooth 5.0
Vo-LTE
Support
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo
Developing Environment
Operating System
Android 12; GMS
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0GHz
RAM+ROM
4GB + 64GB
Expansion
Supports up to 256GB Micro SD (TF) card
User Environment
Operating Temp
-4 °F to 122 °F / -20 °C to 50 °C
Storage Temp
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP68 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Scanner
Zebra: SE4710; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note
*This function is optional
Camera
Front Camera
5MP
Rear Camera
13MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional Accessories
Accessories
Adaptor, USB Cable, Charging Cradle, etc.
Note
* For detailed specification, please check Accessory Guide.
Support & Downloads
Videos
10/20/23
8/5/22
Accessories
Power Supply Adapter (MC95)
PWR-C95-5V2A-US
Main Battery (MC95)
BTRY-C95-50MA
Charging Cradle (MC95)
CRD-C95-RBC

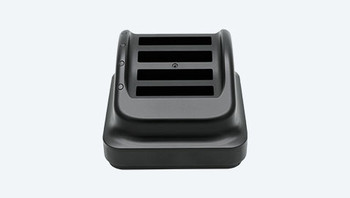

4-Slot Charging Cradle for Main Battery (MC95)
CRD-C95-MBC
