CP30 RFID Printer
Powerful RFID and Barcode Printing, Speedy and Highly SecuredChainway CP30 is a Desktop RFID printer with outstanding printing performance, supporting both thermal and thermal transfer printing. Featuring 3.5-inch LCD touch screen, multiple communication interfaces, and automatic identification of printheads of different resolutions, CP30 can accurately and quickly print various RFID tags, barcodes, invoices and wristbands, meeting the printing needs of various industries.
CP30 RFID Printer
Powerful RFID and Barcode Printing, Speedy and Highly Secured
Chainway CP30 is a Desktop RFID printer with outstanding printing performance, supporting both thermal and thermal transfer printing. Featuring 3.5-inch LCD touch screen, multiple communication interfaces, and automatic identification of printheads of different resolutions, CP30 can accurately and quickly print various RFID tags, barcodes, invoices and wristbands, meeting the printing needs of various industries.
features
functions
Specifications
Printing
Printing Method
Thermal transfer / Direct thermal
Resolution
203dpi / 300dpi
Max
8ips (203dpi) / 6ips (300dpi)
Max
108mm (203dpi) / 106mm (300dpi)
Max
2,286mm (203dpi) / 1,524mm (300dpi)
Media
RFID Tag
UHF RFID, 860-928MHz, EPC C1G2 (ISO18000-6C)
Types
Continuous Paper, Gap, Black Mark, Punched Hole Label
Width
1'' (25.4) - 4.65'' (118mm), include the liner
Thickness
0.002'' (60um) - 0.01'' (250um)
Height
0.0787'' (20mm) - 9.84'' (250mm)
Label Roll Diameter
5'' (127mm) Max
Core Diameter
0.5'' (12.7mm), 1'' (25.4mm), 1.5'' (38mm)
Ribbon
Types
Wax, Wax / Resin, Resin
Width
1.18'' (30mm) - 4.33'' (110mm)
Length
984' (300m)
Core Diameter
1'' (25.4mm)
Physical Characteristics
Dimensions
293mm (L) × 237mm (W) × 180mm (H)
Weight
2.9kg / 102.29oz.
Display
3.5 TFT Color Touch Panel LCD
Interfaces
Standard: USB, USB host, Ethernet
Optional: Wi-Fi, Bluetooth
Optional: Wi-Fi, Bluetooth
Power Supply
External AC / DC switching power adapter, AC 100V-240V / DC 24V / 2A / 48W, Peak 8A
User Environment
Operating Temp
41℉ (5℃)-104℉ (40℃), humidity 30% to 85% non-condensing
Storage Temp
-4℉ (-20℃)-122℉ (50℃), humidity 10%-90% non-condensinng
Performance
RAM
128MB
Flash
256MB
UHF RFID
Engine
M6E-NANO module based on impinj Indy R500
CM510-1 module based on impinj E510
CM510-1 module based on impinj E510
Frequency
920-925MHz / 902-928MHz / 865-868MHz
Protocol
EPCglobal C1G2 (ISO18000-6C)
Supports Impinj Gen2X
Supports Impinj Gen2X
Other Specification (RFID Printer)
Emulation
ZPL-II, TSPL, DPL, EPL
Software
Label Design Software : Bartender Ultralite
Driver: Windows Vista 7 / 8 / 10, Server 2012 / 2016 / 2018
Driver: Windows Vista 7 / 8 / 10, Server 2012 / 2016 / 2018
Resident Fonts
Bitmap fonts: 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
TTF fonts: Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable
TTF fonts: Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable
Download Fonts
Bitmap fonts: 90°, 180°, 270° rotatable and 10 times expandable in horizontaland vertical directions
Asian fonts: 16 x 16, 24 x 24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90°, 180°, 270°, rotatable and 8 times expandable in
Asian fonts: 16 x 16, 24 x 24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90°, 180°, 270°, rotatable and 8 times expandable in
Barcodes
1D: Code 39, Code 93, EAN 8 / 13 (add on 2 & 5), UPC A / E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC / EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China
Code Page
850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257, UTF-8, UTF-16BE, UTF-16LE,DBCS 932 (JIS), 936 (GBK), 949 (Koran), 950 (BIG5)
Graphics
Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download
Options & Accessory
Peeler Module, Cutter Module, External Label Roll Holder
Agency Approval
CE EMC (EN 55022 Class B), FCC EMC (Class A), CCC, ROHS
Support & Downloads
Videos
6/29/22
11/9/22
Accessories

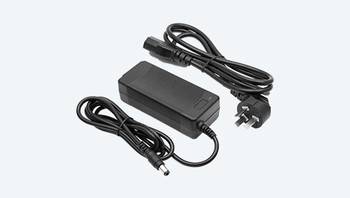

AC Adapter (CP30)
PWR-CP30-24V2.5A
USB Interface Cable (CP30)
USBC-CP30
Label and Ribbon Sample (CP30)
LRS-CP30-CP20

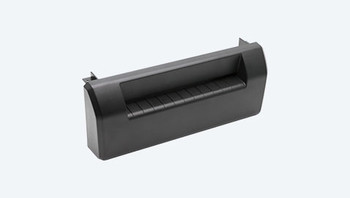

Cutter Module (CP30)
CM-CP30-4IN
Peeler Kit (CP30)
PM-CP30
WiFi Card (CP30)
WFM-CP30

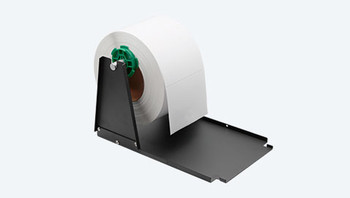

External Roll HoIder (CP30)
ERH-CP30
Platen Roller Kit (CP30)
PRM-CP30

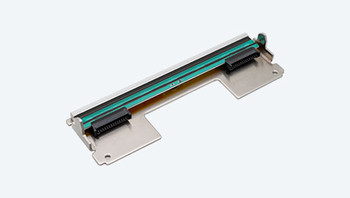

300dpi Print Head (CP30)
TPH-CP30-300DPI
