SR160 UHF RFID Scanner (Corded)

Powerful UHF and 1D/2D Performance
Chainway SR160 is a powerful UHF Scanner that supports both UHF RFID and 1D/2D scanning. Adopting self-developed UHF RFID modules based on the Impinj E310, supporting Impinj Gen2X for excellent single-tag read/write performance. SR160 can read various tags fastly and accurately with 7-100cm adjustable reading range. The scanner also supports a high-performance barcode scan engine to capture a wide range of 1D/2D barcodes. SR160 can be widely used in retail, inventory, warehouse, logistics, manufacturing, etc.
features
functions

Specifications

Physical Characteristics
Dimensions
154.0 x 87.8 x 65.0mm / 6.46 x 3.43 x 2.56in.
Battery
2600mAh (Wireless Version)
Material
Plastic
Buzzer
Voice prompt
Keypad
Power key / scan key
Button
UHF、2D、UHF or 2D
Indicator LED
Function: 1 for UHF, 1 for 2D
Status: 1 for UHF, 1 for 2D
Power: 1
Bluetooth: 1
Comm Interface
RJ45 interface,HID USB
Communication
Bluetooth
Bluetooth Low Energy (BLE) 5.0 (Wireless Version)
User Environment
Drop Specification
1.5m
Barcode Scanning
Scan engine
2D Scanner
Min
Code 39 – 4mil、UPC – 7.8mil (60%)、 PDF417 – 5mil、Datamatrix – 5mil
UHF RFID
Engine
CM-3N module based on Impinj E310
Frequency
920-925MHz / 902-928MHz / 865-868MHz
Impinj Gen2X
Supported
Protocol
EPCglobal C1G2 (ISO18000-6C)
Antenna
Circular Polarized Antenna
Output Power
1-25dBm
Output Power Precision
±1dBm
Output Power Flatness
±1dBm
Max Read Range
7-100cm (30cm is recommended)
Optional Accessories
Accessories

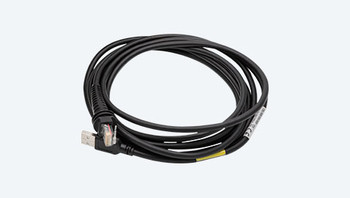

1 * USB-RJ45, 2M

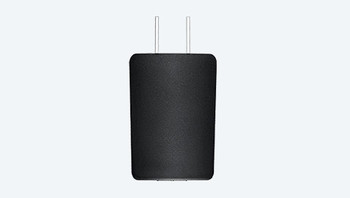

Power Supply: 5V 2A
