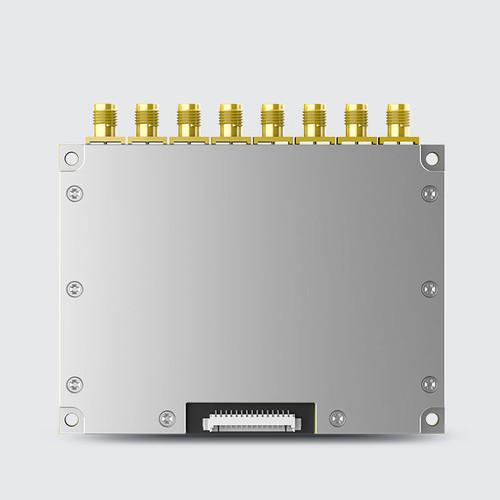

CM710-8 UHF RFID Module (8-Port)

Based on Impinj E710, 93.0 x 79.8 x 8.9 mm
CM710-8 UHF RFID Module (8-Port)
Chainway CM710-8 is an 8-Port RFID module based on Impinj E710 that can be integrated in fixed RFID readers, etc. With the support of Impinj Gen2X, this module provides superior UHF performance. It is also resistant to electromagnetic interference and good at heat dispersion. The module is ideal for industries like warehousing, logistics, apparel, production lines and such to boost efficiency.
features
functions

Specifications

Physical Characteristics
Dimensions
93.0 mm x 79.75 mm x 8.9 mm
Weight
108.0 g / 3.81 oz.
RFID Features
RF Chip
Impinj E710
Impinj Gen2X
Supported
Air Interface Protocol
EPCglobal Gen2 ( ISO18000-6C )
Working Frequency
865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band )
Output Power
5-30dBm adjustable; 1dB step interval; +/- 1dB precision
Output Power Flatness
+/- 0.2dB
Antenna Interface
8-channel 50Ω RF connector SMA receptacle
Regions Supported
FCC 902-928 MHz
ETSI 865.6-867.6 MHz
China 920-925 MHz
Others for customization ( 865-868, 902-928 MHz )
Receive Sensitivity
< -86 dBm
Tag RSSI
Supported
Antenna Detector
Supported
Ambient Temp Monitor
Supported
Working Mode
Single / DRM
Communication Interface
Connector
15 PIN FPC Connector
Host Communication
UART 3.3V TTL Level
Baud Rate: 115200bps
Power Supply
Input Voltage
DC 3.5-5.25V
Power Consumption in RF Output Mode
7.5W
Power Consumption in Standby Mode（EN high TTL level）
0.175W
Power Consumption in Power Down Mode（EN low TTL level）
42.5μW
User Environment
Operating Temp
-13 °F to 149 °F / -25 °C to 65 °C
Storage Temp
-40 °F to 185 °F / -40 °C to 85 °C
Humidity
10% - 95%
Reading Performance
Reading Rate
950+ tags/s
Reading Range
Up to 10m ( with 6dBi antenna, Alien9662 tag )
