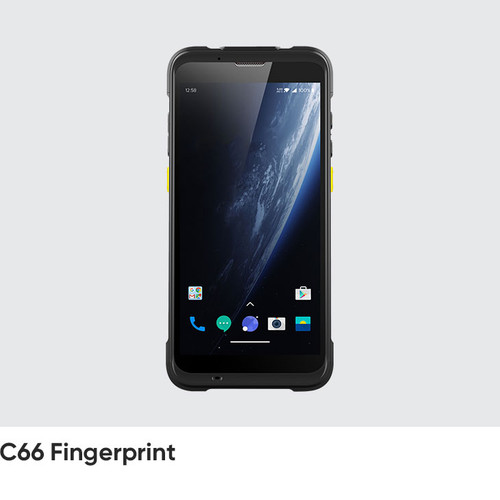

C66 Fingerprint Scanner (Android 11/13)
More Powerful, More Extensible, More Advanced in Every Way
Chainway C66 is a biometric handheld terminal. It is based on the Android 11/13 and equipped with Qualcomm Octa-core CPU, 5.5 high-definition touch screen, large capacity detachable battery, supports fast charging, and various accessories. Additionally, it has integrated high-performance biometric functions to support fingerprint identification, and face recognition applications with high security and flexibility. Also, it can be equipped with barcode scanning, NFC, and other functions, which are widely used in census, etc.
features
functions
Specifications
Physical Characteristics
Dimensions
160.0 x 76.0 x 17.0 mm / 6.3 x 2.99 x 0.67 in.
Weight
297 g / 10.47 oz. (device with battery)
Display
5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Touch Panel
Multi-touch panel, gloves and wet hands supported
Power
Removable main battery 5200mAh, support QC3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by
Notification
Sound, LED indicator, vibrator
Expansion Slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces
USB Type-C, USB 3.1, OTG, extended thimble
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
1 power key, 2 scan keys, 2 volume keys
Sensors
Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Communication
WLAN
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 13
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 13
WWAN (Europe, Asia)
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America)
2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 11 / 13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Octa-core, 2.0GHz
RAM+ROM
3GB + 32GB / 4GB + 64GB
Expansion
Supports up to 256 GB Micro SD (TF) card
User Environment
Operating Temp
-4oF to 122oF / -20 ℃ to +50 ℃
Storage Temp
-40oF to 158oF / -40 ℃ to +70 ℃
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range

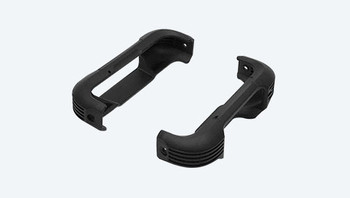

Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Imager Scanner
Zebra: SE4710/SE2100; Honeywell: N6603/6803FR; E3200; IA166S; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note
*This function is optional
Fingerprint 1
Sensor
TCS1
Sensing Area (mm)
12.8 × 18.0
Resolution (dpi)
508 dpi, 8-bit greylevel
Certifications
FIPS 201, STQC
Format Extraction
ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
*This function is optional
Fingerprint 2
Sensor
TLK1NC02
Sensing Area (mm)
14.0 X 22.0
Resolution (dpi)
508dpi, 256 greylevel
Certifications
FIPS 201, FBI
Format Extraction
ISO19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection
Support by SDK
Security
AES, DES key encryption of the host communication channel
Note
*This function is optional
Camera
Rear Camera
13MP autofocus rear camera with flash
Facial Recognition lSO19794-5 Compatible
Facial Recognition lSO19794-5 Compatible
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
