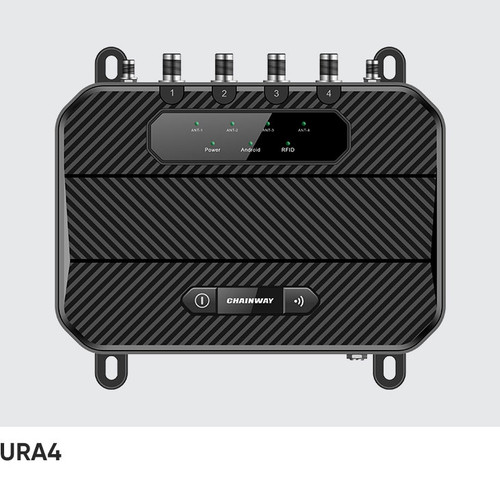

URA4 Fixed RFID Reader (Android 9)
Excellent RFID Capability with Suitable Android OS & Various InterfaceChainway URA4 is a 4-channel fixed RFID reader, based on Android 9 Integrated with Impinj E710 chip. With the added support of Impinj Gen2X, it delivers superior UHF performance. The reader supports RS232, RJ45 and HDMI, and can be compatible with various types of antennas. With high stability and outstanding performance, URA4 can be ideally applied to warehouse management, archives and library management, bank, clothing and footwear retail, jewelry monitoring, watch industry, laundry, production line management, medical instrument cabinet and vending machines.
URA4 Fixed RFID Reader (Android 9)
Excellent RFID Capability with Suitable Android OS & Various Interface
Chainway URA4 is a 4-channel fixed RFID reader, based on Android 9 Integrated with Impinj E710 chip. With the added support of Impinj Gen2X, it delivers superior UHF performance. The reader supports RS232, RJ45 and HDMI, and can be compatible with various types of antennas. With high stability and outstanding performance, URA4 can be ideally applied to warehouse management, archives and library management, bank, clothing and footwear retail, jewelry monitoring, watch industry, laundry, production line management, medical instrument cabinet and vending machines.
features
functions
Specifications
Physical Characteristics
Dimensions
214 (L) x 148 (W) x 30 (H) mm
Weight
1000g / 35.27 oz. (without antenna)
Material
Aluminium alloy
Expansion Slot
1 slot for Nano SIM card, 1 slot for TF card
Input Voltage
DC 10V – 24V
Standby Current
< 30mA
Comm Interface
1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB Host
GPIO
4 Input Optical-couplings, 4 Output Optical-ouplings, isolation
Baud Rate
115200 bps
Cooling Mode
Air cooling
Work Current
1300mA +/-5% @ DC 12V Input
Display Interface
HDMI Type A, support 720P
Power Supply
DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W)
Communication
Ethernet interface
10/100 Base-T Ethernet (RJ45)
WLAN
Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,
153
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,
153
WWAN (Europe, Asia)
2G: B1/B5/B8
3G: CDMA EVDO: BC0
TD-SCDMA: B34/B39
WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B3/B5/B7/B8/B20
3G: CDMA EVDO: BC0
TD-SCDMA: B34/B39
WCDMA: B1/B5/B8
4G: TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B3/B5/B7/B8/B20
WWAN (America)
3G: B2/B4/B5
4G: B2/B4/B5/B7/B12/B13/B17/B28a/B28b
4G: B2/B4/B5/B7/B12/B13/B17/B28a/B28b
Bluetooth
Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Developing Environment
Operating System
Android 9.0
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse/Android Studio
User Environment
Operating Temp
-25 °C to 65 °C
Storage Temp
-40 °C to 85 °C
Humidity
10% - 95%
Performance
CPU
Qualcomm 1.8 GHz Octa-core
RAM+ROM
3 GB + 32 GB
2 GB + 16 GB (optional)
2 GB + 16 GB (optional)
UHF RFID
Engine
CM710-4 module based on Impinj E710
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna
Supporting a variety of antennas, such as 6dBic, 9dBic
Output Power
1W (30dBm, support +5~+30dBm adjustable, POE/DC power)
2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.)
2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.)
Output Power Precision
+/- 1dB
Output Power Flatness
+/- 0.2dB
Receive Sensitivity
< -84dBm
RSSI
Supported
Ambient Temp Monitor
Supported
Fastest Read Rate
900+ tags/sec
Antenna Detector
Supported
Antenna Port
4 channel 50Ω TNC port
